Product Description

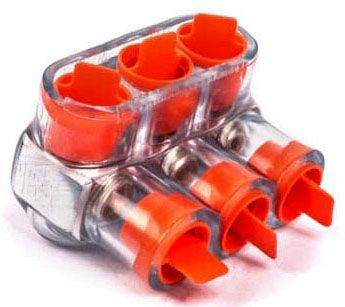

The ABB CSB-2/0-3-S is a Multi-Tap Cable Block designed for efficient electrical connections. This 1-way, 3-outlet block supports stranded aluminum or copper conductors and operates at a voltage of six hundred VAC. It accommodates wire sizes from fourteen to two aught. It features clear PVC insulation for protection and ease of installation.
- 1-way, 3-outlet design
- Compatible with aluminum and copper conductors
- Easy field installation without taping
Product Highlights
This product is ideal for commercial and industrial applications. The design eliminates extra taping during installation, saving time and increasing safety.
Product Information
Standard Information
-
Manufacturer: ABB - Installation Products
-
Series: CSB
Technical Specifications
-
Application: Commercial and Industrial Applications
-
Conductor Type: Stranded Aluminum/Copper
-
Dimensions: 2.35 inches L x 1.5 inches W x 1.63 inches H
-
Manufacturer Part Number: CSB-2/0-3-S
-
Material: Aluminum
-
Specifications: 14 to 2/0 AWG Wire, 3/16 inches Hex Screw, Clear PVC Insulation
-
Standards/Approvals: ANSI C119.4|UL File No. E9809
-
Temperature Rating: 90 degrees C
-
Type: 1-Way 3-Outlet Dual Rated Encapsulated
-
Voltage Rating: 600 VAC
