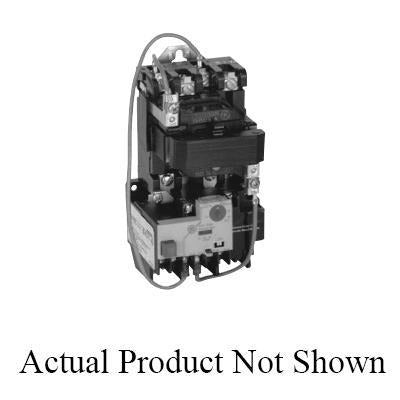

Abb cr306dxh102 Magnetic Starter Size 2 13-27A 600VAC

Product Description

The ABB cr306dxh102 is a non-combination, non-reversing magnetic starter with a solid state overload relay, rated for 13 to 27 amps and 600 VAC across a 3-phase, 3-pole configuration. Part of the ABB 300-Line Series, this Size 2 starter provides motor overload protection with manual reset and operates across a frequency range of 50/60 Hz. It is designed for industrial and commercial electrical installations where reliable motor starting and protection are required. Licensed electricians and industrial maintenance technicians are the primary installers. The open enclosure style suits panel or enclosure mounting, and DIN rail mounting simplifies integration into standard electrical panels.

The cr306dxh102 is suited for 3-phase motor control applications in commercial HVAC systems, industrial process equipment, pump panels, and fan control circuits. Its solid state overload protection covers the 13 to 27 amp range, making it appropriate for mid-sized motor loads. The 1NO-1NC auxiliary contact configuration supports standard control circuit interlocking and status signaling. This starter fits installations where a non-reversing, manual-reset overload device is specified and where an open-style device will be housed inside a separately rated enclosure or panel.

Key Features

• Solid state overload relay with manual reset, rated 13 to 27 amps
• 600 VAC voltage rating across 3-phase, 3-pole configuration
• 1NO-1NC auxiliary contacts for control circuit interlocking
• DIN rail mounting for straightforward panel integration
• Open enclosure style rated NEMA 2, intended for use inside a separately enclosed panel
• Wide operating temperature range of -20 to 70 degrees C
• Saddle clamp terminal connection for secure conductor termination

Compatibility

Designed as an OEM-style replacement or new-installation magnetic starter for 3-phase motor control panels and commercial or industrial electrical systems requiring a non-combination, non-reversing Size 2 starter in the ABB 300-Line Series.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. Disconnect and lock out all power to the panel before servicing or installing the starter. Verify that the conductor sizing and terminal torque specifications comply with the NEC and the panel manufacturer requirements before energizing. The manual reset overload must be tested after installation to confirm proper trip and reset function before placing the motor circuit into service.
