ABB CR306D002 Starter Three-Phase Magnetic 115-120V 45A NEMA 2

Product Description

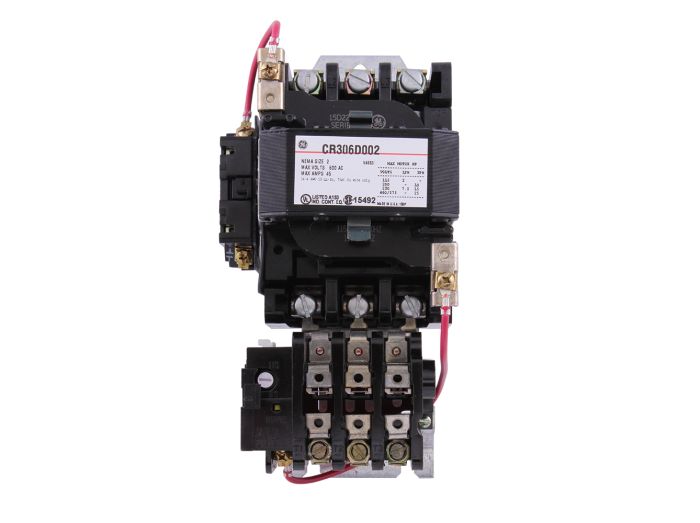

The ABB CR306D002 Starter is a three-phase, magnetic starter. It operates at a voltage between 115 and 120 volts with a current rating of forty-five amperes. This starter is part of the 300-Line Starters Series and is designed to offer reliable protection against overloads in all phases, conforming to NEMA standards. It features a durable encapsulated coil and comes with a three-leg overload relay for enhanced performance. The starter is suitable for panel mounting.

• Protects against overloads in all phases with a three-leg overload relay.
• Features an encapsulated coil for added durability.
• Complies with NEMA standards for safety and performance.

Product Highlights

Product Information

Standard Information

• Brand: ABB Industrial Connections & Solutions
• Manufacturer: ABB Electrification

Technical Specifications

• Control Voltage: 120 V
• Current Rating: 45 A
• Enclosure Type: Open
• Mounting Type: Panel Mount
• Series: 300-Line Starters Series
• Standards: NEMA
• NEMA Size: 2
• Phase: Three Phase
• Voltage: 115 - 120V
• Horsepower: Max 25 Horsepower
• Poles: 3
• Nominal Voltage: 120 VAC
• Coil Type: Magnetic
• Overload Type: Thermal
• Termination: Screw
• NEMA Frame Size: 2
• Mounting: Surface
• Coil Voltage: 110 VAC at 50 Hz, 115 to 120 VAC at 60 Hz
• Voltage Rating: 600 VAC
• Frequency Rating: 50/60 Hz
• Reset Type: Manual
• Connection Type: Pressure Screw Terminal
• Overload Relay: (2) 3 Leg Block Type Bimetal
• Operating Temperature: -20 to 70 deg C
