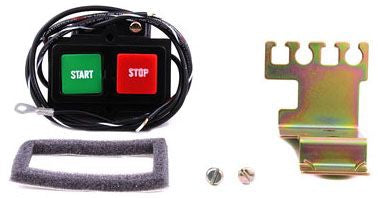

Abb CR305X220N Pushbutton Kit 300 Line

Product Description

The ABB CR305X220N is a pushbutton kit designed for use with 300 Line motor starter and control assemblies. This kit provides the pushbutton operator hardware needed to complete or restore control functionality on compatible control stations and enclosures. Electrical contractors and industrial maintenance technicians install this type of kit during new construction, panel assembly, or field service on motor control equipment. The CR305X220N weighs 0.44 pounds and ships in a compact package, making it easy to carry on the job site or stock in a service van.

This pushbutton kit is intended for 300 Line control applications where operator interface hardware must be installed, replaced, or upgraded. It is suited for use in light commercial and industrial environments where motor control stations require reliable pushbutton operation. Electricians working on motor control centers, disconnect assemblies, and control enclosures will encounter this type of hardware in both new installations and retrofit projects.

Key Features

• Designed for ABB 300 Line motor starter and control station applications
• Compact form factor fits standard control enclosure cutouts
• Lightweight at 0.44 pounds for easy handling and van stock
• OEM-style replacement kit for restoring control station functionality
• Complete kit format simplifies ordering and reduces field assembly time

Compatibility

Designed as an OEM-style replacement pushbutton kit for ABB 300 Line motor starter and control station assemblies.

Installation Notes

Installation should be performed by a licensed electrician following applicable NEC requirements. De-energize and lock out the control panel before removing or installing any pushbutton hardware. Verify that the operator button style and mounting hole dimensions match the existing enclosure cutout before installation. Do not overtighten mounting hardware, as this can crack the operator body or distort the panel face.

Technical Specifications

• Weight: 0.44 pounds
• Package Length: 4.5 inches
• Package Width: 2.75 inches
• Package Height: 2.5 inches
• UPC: 78316635251

Standard Information

• Brand: ABB
• Manufacturer Part Number: CR305X220N
