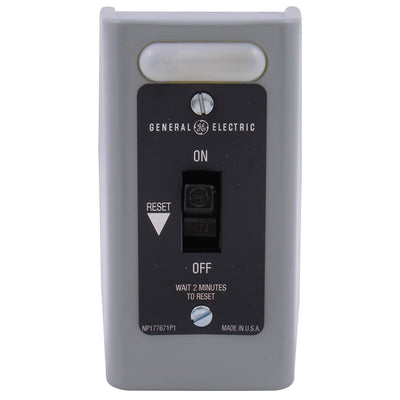

Abb cr101y11 Manual Motor Starter 1 Hp 16A Nema 1

Product Description

The ABB cr101y11 is a full voltage non-reversing manual motor starter rated for 1 horsepower and 16 amps at 230 volts AC/DC. It houses a single pole toggle control in a NEMA 1 surface-mount enclosure constructed of plastic. The unit is part of the CR101 series and provides direct-on-line starting and overload protection for small single-phase motors. A licensed electrician installs this device as part of a branch circuit motor control application. It carries UL 508 listing and CSA certification, making it suitable for use in standard indoor commercial and light industrial electrical installations.

The cr101y11 is used in single-phase motor applications across a range of light-duty industrial and commercial settings. Typical applications include grinders, conveyors, fans, mixers, and blowers where a simple manual on/off toggle with overload protection is required. The NEMA 1 enclosure suits dry indoor environments. This starter is appropriate for residential-adjacent mechanical rooms or light commercial equipment rooms where exposure to moisture, dust, or contaminants is not a concern.

Key Features

• Full voltage non-reversing operation for straightforward single-direction motor starts
• 16 amp continuous current rating supports motors up to 1 HP at 230 volts
• Toggle-style manual control for direct operator switching without auxiliary circuitry
• NEMA 1 enclosure provides basic indoor protection in dry locations
• UL 508 listed and CSA certified for compliance with standard electrical codes
• Compatible with both 25 Hz and 60 Hz supply frequencies

Compatibility

Designed as an OEM-style replacement or direct-install manual motor starter for single-phase motors rated up to 1 HP at 230 volts AC/DC in applications including grinders, conveyors, fans, mixers, and blowers.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and any applicable local electrical codes. Disconnect and lock out all power to the branch circuit before mounting or wiring this device. The surface-mount NEMA 1 enclosure must be installed in a dry indoor location free from excessive dust, moisture, and corrosive atmospheres. Do not exceed the rated amperage or voltage when selecting this starter for a motor application.

Technical Specifications

• Motor Power: 1 HP
• Amperage Rating: 16 amps
• Voltage Rating: 230 volts AC/DC
• Frequency Rating: 25/60 Hz
• Number of Poles: 1
• Phase: Single
• Type: Full Voltage Non-Reversing
• Control Type: Toggle
• Enclosure Type: NEMA 1
• Material: Plastic
• Dimensions: 4.16 inches H x 2.28 inches W x 2.63 inches D
• Standards and Approvals: UL 508, CSA Certified
• Series: CR101

Standard Information

• Brand: ABB
• Manufacturer Part Number: cr101y11
