ABB CPO93-0-6 Heat Shrink 600 VAC 3/32 Inch Replacement MPN

Product Description

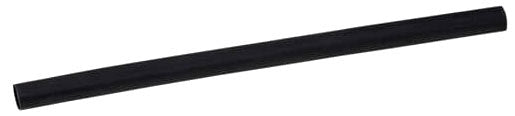

The ABB CPO93-0-6 is a heat shrink tubing made from cross-linked polyolefin. It is designed for insulating connectors and splices. This tubing has a thin wall and is black in color. It can accommodate a range of temperatures from -55 to 135 degrees Celsius. The tubing has a shrink ratio of 2:1 and comes in a length of six inches.

• Thin-wall heat shrinkable tubing.
• Flame-retardant and meets several standards.
• Temperature rating from -55 to 135 degrees Celsius.

Product Highlights

This tubing is used widely in electrical applications, ensuring safe insulation of connections.

Product Information

Standard Information

• Manufacturer: Thomas & Betts Co
• Brand: ABB

Technical Specifications

• Type: Flame-Retardant Non-Lined Standard
• Color: Black
• Inner Diameter Expanded: 3/32 inch
• Inner Diameter Recovered: 0.05 inch
• Length: 6 inches
• Material: Cross Linked Polyolefin
• Shrink Ratio: 2:1
• Voltage Rating: 600 VAC
• Shrink Temperature: 120 degrees Celsius
• Temperature Rating: -55 to 135 degrees Celsius
• Standards/Approvals: UL 224, CSA C22.2, MIL-DTL-23053/5 Class 1, 2, AMS 3636, AMS 3637, DEF STAN 59-97
• Wall Thickness Recovered: 0.02 inch
• Wall Type: Thin
