ABB CPO375-0-6 Heat Shrink 600 VAC (3/8 Inch) Replacement MPN

Product Description

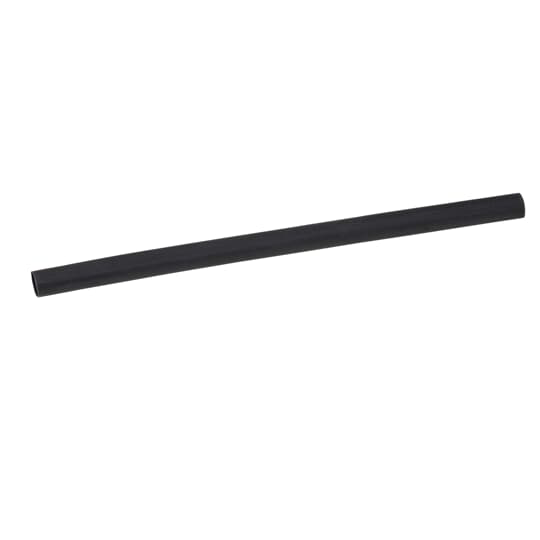

ABB CPO375-0-6 is a heat shrinkable tubing designed for insulating applications. It is made from cross-linked polyolefin material. This product has a shrink ratio of 2:1 and a length of six inches. It operates in temperatures ranging from negative fifty-five to one hundred thirty-five degrees Celsius.

• Flame-retardant and complies with multiple industry standards
• Suitable for wire sizes from twelve to six AWG
• Inner diameter expands to three-eighths of an inch

Product Highlights

This heat shrink tubing provides insulation for electrical connections and offers some strain relief.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Type: Flame-Retardant Non-Lined Standard
• Material: Cross Linked Polyolefin
• Color: Black
• Length: 6 inches
• Shrink Ratio: 2:1
• Operating Temperature: -55 to 135 degrees Celsius
• Voltage Rating: 600 VAC
• Inner Diameter (Expanded): 3/8 inches
• Inner Diameter (Recovered): 0.19 inches
• Wall Thickness (Recovered): 0.03 inches
• Standards/Approvals: UL 224, CSA C22.2 No. 198.1, MIL-DTL-23053/5 Class 1, 2, AMS 3636, AMS 3637, DEF STAN 59-97
