Product Description

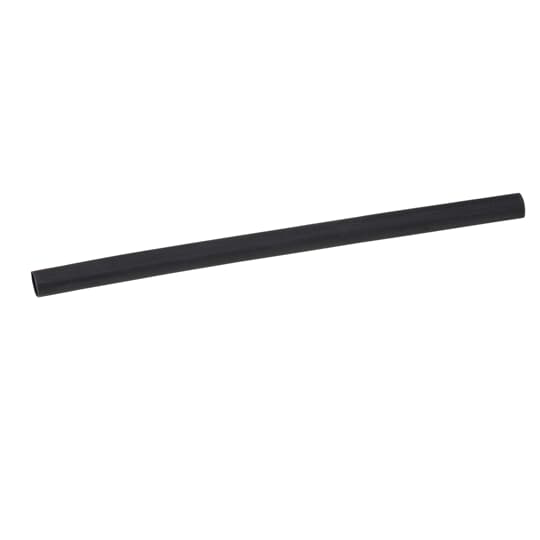

The ABB CPO250-0-6 is a heat shrink tubing designed for insulation and protection in electrical applications. Made by Thomas & Betts, this thin-wall heat shrink features a black cross-linked polyolefin construction. It measures one fourth of an inch in diameter, shrinking to thirteen hundredths of an inch when heated. The tubing has a shrink ratio of two to one and a length of six inches. It operates effectively in temperatures ranging from negative fifty-five to one hundred thirty-five degrees Celsius.
- Thin-wall design suitable for various electrical wiring needs.
- Compliant with multiple safety and quality standards including UL and CSA.
- Provides exceptional insulation for connectors and splices.
Product Highlights
This heat shrink tubing is ideal for insulating bare connectors, providing strain relief, and harnessing wires efficiently.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer: Thomas & Betts Co
Technical Specifications
-
Type: Thin-Wall Heat Shrinkable Tubing
-
Material: Cross Linked Polyolefin
-
Color: Black
-
Length: 6 inches
-
Voltage Rating: 600 VAC
-
Shrink Ratio: 2:1
-
Shrink Temperature: 120 degrees Celsius
-
Temperature Rating: -55 to 135 degrees Celsius
-
Inner Diameter Expanded: 1/4 inch
-
Inner Diameter Recovered: 0.13 inch
-
Wall Thickness Recovered: 0.03 inch
