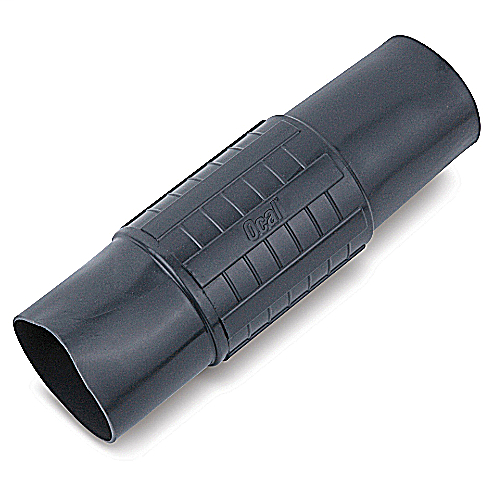

ABB CPL1-G Ocal CPL1-G 1 Inch PVC Coated Steel Gray Coupling

Product Description

The ABB CPL1-G is an Ocal conduit coupling designed for use with rigid conduits. This coupling features a size of one inch, providing a strong connection to enhance electrical installations. It is made of galvanized steel with a PVC coating for added protection in corrosive environments.

• Molded ribs on the outer coating assist in easy installation.
• Pressure sealing sleeves safeguard connections.
• Nominal .002 inch blue urethane coating applied to the interior and threads.

Product Highlights

The Ocal CPL1-G coupling is effective in providing corrosion-protected connections for conduit sections.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: CPL1-G

Technical Specifications

• Size: 1 inch
• Type: Straight Threaded
• Color: Gray
• Finish: PVC Coated
• Material: Steel
• Dimensions: 4.94 inches length
• Application: For providing corrosion protected connections for conduit sections
• Standards/Approvals: UL File No. E46453 | CSA Certified
• Suitable For Use With: Rigid Conduits
