ABB CH924MV T-B B24 SINGLE LOCK SYS 1XPG29-1

Product Description

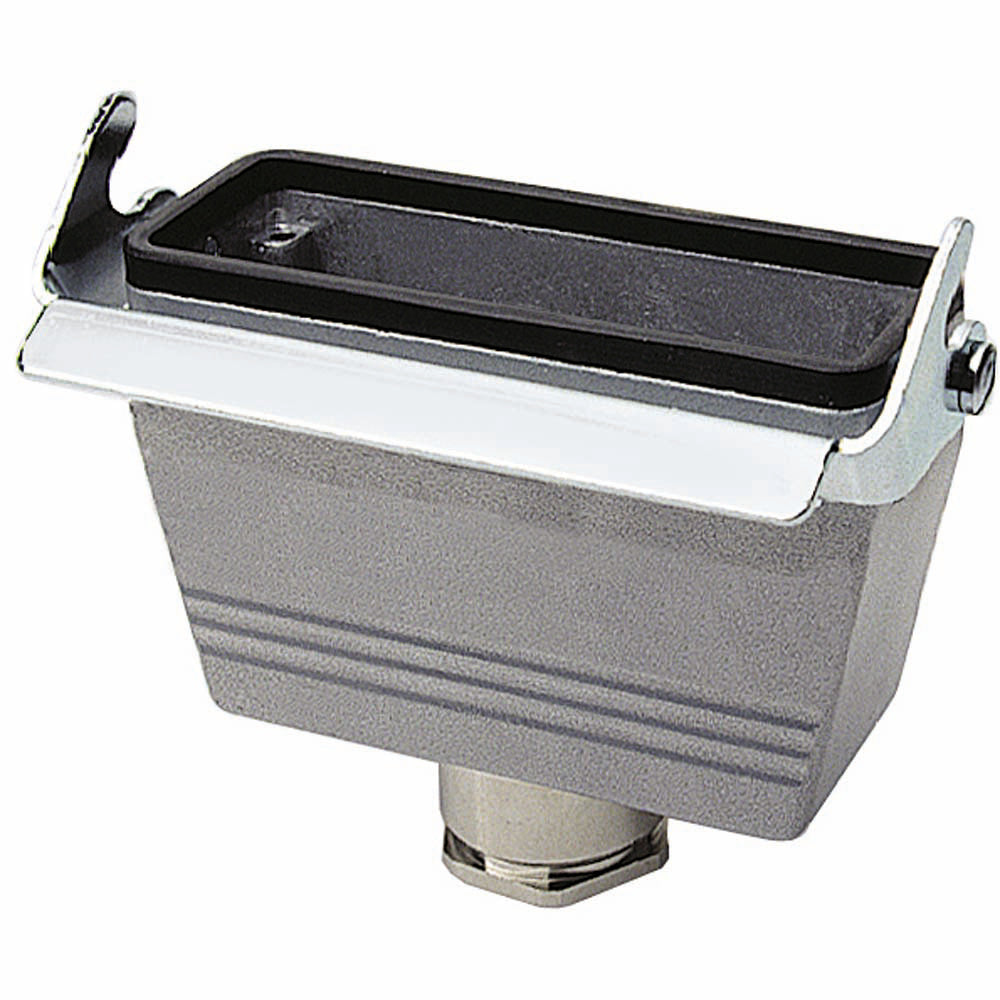

The ABB CH924MV is a Pos-E-Kon Locking In-Line Coupler Hood designed for secure electrical connections. It features a single lever operation and top entry position with one inch by one inch NPT entry. This product is suitable for use with standard hoods and can operate in temperatures between negative forty to two hundred fifty-seven degrees Fahrenheit. Constructed from die cast aluminum, it provides durability and is coated with epoxy powder for corrosion resistance.

• Single lever for easy operation
• Rated for 16 A and 600 VAC
• Includes IP65 protection for internal components

Product Highlights

The CH924MV hood is ideal for in-line, portable, or special service connections.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Manufacturer Part Number: CH924MV

Technical Specifications

• Application: For in-line, portable or special service connections
• Entry Position: Top
• Entry Type: 1 x 1 in NPT
• Finish: Epoxy Powder Coated
• Material: Die Cast Aluminum
• Series: B Series
• Specifications: 16 A, 600 VAC
• Temperature Rating: -40 to 257 deg F
• Standards/Approvals: CSA Certified, UL File No. E215386, IEC 529, VDE 0470
• Suitable For Use With: Standard Hood
