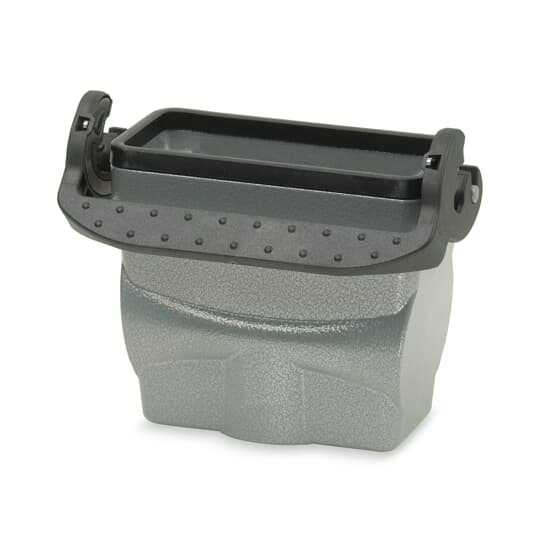

ABB CH806HMV B6 SGL LOCK SYS 1XPG13,5-1/2 TOP

Product Description

The ABB CH806HMV is a single lever locking in-line coupler hood designed for reliable performance. This hood features a top entry and is equipped with six contacts for stable connections. It accommodates NPT entry with dimensions of one inch by half an inch.

• Top entry position for easy access
• Die cast aluminum construction for durability
• Temperature rating from negative forty to two hundred fifty-seven degrees Fahrenheit

Product Highlights

This coupler hood is ideal for in-line, portable, or special service connections. It meets various applicable standards and is suitable for a variety of applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: CH806HMV

Technical Specifications

• Application: For in-line, portable, or special service connections
• Entry Position: Top
• Entry Type: 1 x 1/2 in NPT
• Finish: Epoxy Powder Coated
• Material: Die Cast Aluminum
• Series: B Series
• Specifications: 16 A, 600 VAC
• Standards/Approvals: CSA Certified, UL File No. E215386, IEC 529, VDE 0470
• Temperature Rating: -40 to 257 degrees Fahrenheit
• Suitable For Use With: Standard Hood
