Product Description

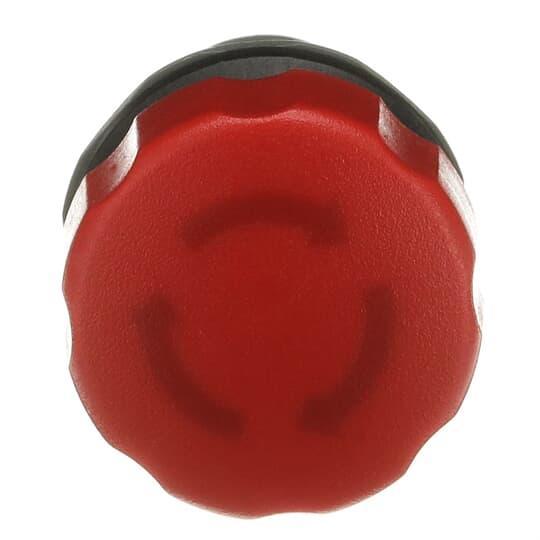

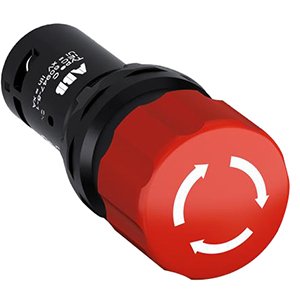

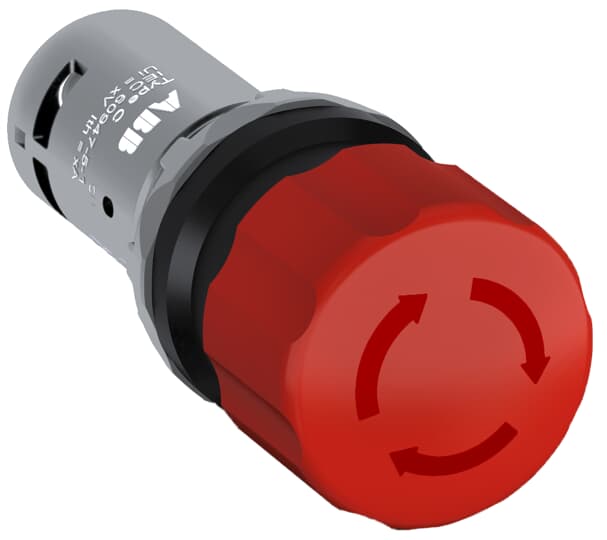

The ABB CE3T-10R-11 is a compact emergency stop twist release pushbutton with a red pushbutton actuator. It features 22mm mounting and includes 1 NO and 1 NC contact blocks. Designed for control panels, this non-illuminated mushroom switch offers reliable emergency stop functionality.
- Compact design for easy installation
- Twist release mechanism for secure operation
- Suitable for control panel applications
Product Highlights
Compact emergency stop pushbutton with twist release and integrated contacts for safety applications.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: CE3T-10R-11
Technical Specifications
-
Type: Compact Emergency Stop
-
UNSPSC Code: 39121500
-
Brand Name: ABB
-
MFR Part Number: CE3T-10R-11
-
Item: Push Button Switch
-
Series: CE Series
-
Action: Twist Release
-
Contact Form: 1 NC - 1 NO
-
Contact Rating: 1 A at 240 VAC, 0.2 A at 125 VDC
-
Enclosure Type: NEMA 1/3R/4/12/13/4X/IP69K/IP20/IP66/IP67
-
Terminal Type: Fingersafe Screw
-
Standard/Approvals: CE Certified, RoHS Compliant
-
Application: Control Panels
-
Contact Configuration: 1NO-1NC
-
Operator Type: Pushbutton/Twist-Release
-
Mounting Type: Panel
-
Actuator: Mushroom
-
Environmental Conditions: -25 to 70 deg C Operating, -30 to 85 deg C Storage
-
Head Size: 30 mm
-
Illumination: Non-illuminated
-
IP Rating: IP66
-
Reset Type: Push Lock - Twist Reset
-
Bezel/Housing: Plastic
