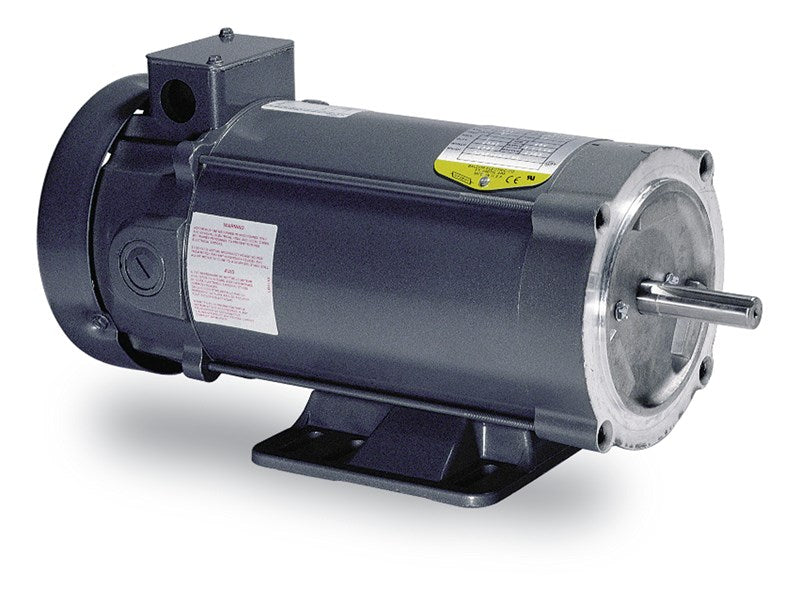

Abb CDP3330 .5HP, 1750RPM, DC, 56C, 3336P, TENV, F1, N

Product Description

The ABB CDP3330 is a .5HP, 1750RPM DC motor with a 56C frame, TENV enclosure, and F1 mounting. This general-purpose motor is suitable for applications requiring variable speed and constant torque. It features a steel frame, reversible shaft rotation, and class F insulation. The motor is designed to meet NEMA standards.

• 0.5 HP, 1750 RPM DC motor
• TENV enclosure for protection against environmental elements
• Reversible shaft rotation for flexible application

Product Highlights

This ABB CDP3330 motor is ideal for conveyors, mixers, and packaging machinery.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: CDP3330
• Country of Origin: US

Technical Specifications

• Armature Voltage: 90 V
• Base Speed: 1750 rpm
• Enclosure: TENV
• Frame: 56C
• Frame Material: Steel
• Output Power: 0.500 HP
• Agency Approvals: CE, CSA, UKCA, UR, WEEE
• Ambient Temperature: 40 °C
• Armature Current: 4.8 a
• Insulation Class: F
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 2 @ 18 AWG, A
• Mounting Arrangement: F1
• Overall Length: 14.94 IN
• Product Family: General Purpose
• Pulley End Bearing Type: Sealed Bearing
• RoHS Status: ROHS COMPLIANT
• Service Factor: 1.00
• Shaft Diameter: 0.625 IN
• Shaft Extension Location: Pulley End
• Shaft Rotation: Reversible
• Motor Standards: NEMA
• Part #: CDP3330
• Category: Motors/GearBox/Clutch
• Subcategory: Motor
• Bearing: 6203
• Bearing Ode: 6203
• Brand: Baldor-Reliance
• Catalog Number: CDP3330
• Country of Origin: US
• Duty: Continuous
• Horsepower: 0.5 hp
• Manufacturer: Baldor-Reliance (ABB)
• Mounting: C-Face Removable Base
• Shaft Size: 0.625 in
• Speed Rating: 1,750
• Standard: CE; CSA; UR
• Type: DC Motors
• UNSPSC: 26101208
• Manufacturer Part Number: CDP3330
• Product Series: PERMANENT MAGNET SCR
• Description: .5HP, 1750RPM, DC, 56C, 3336P, TENV, F1
• Base RPM: 1,750 RPM
• Current Rating: Armature: 4.8 A
• Approvals: CSA, UL
• Net Weight: 32 lbs
• Gross Weight: 32 lbs
• Duty Rating: CONT
• Lifting Lugs: No Lifting Lugs
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Slinger Indicator: No Slinger
