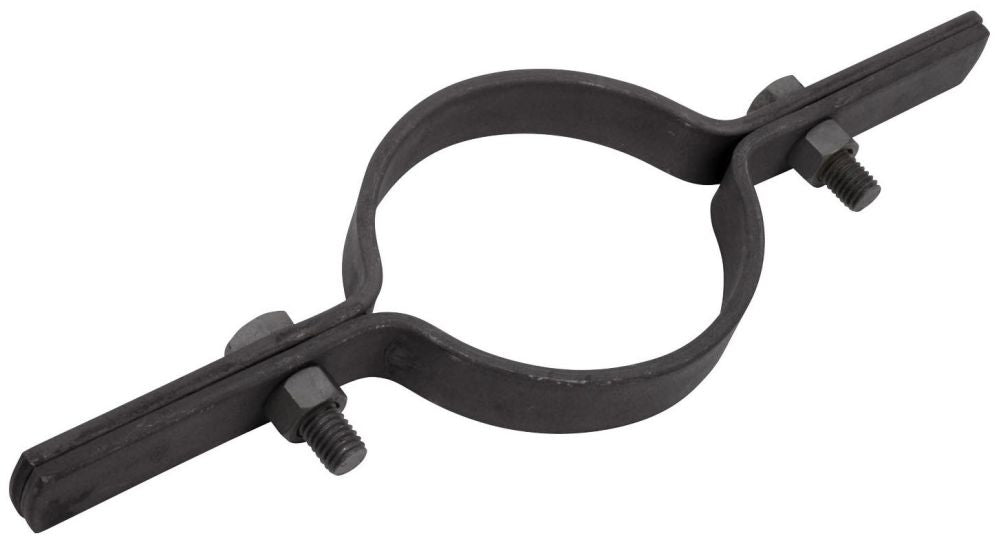

Abb C7201-1/2 Rise Clamp Strut Fitting

Product Description

The ABB C7201-1/2 is a rise clamp designed for use with S-strut channel systems in electrical and mechanical support applications. This fitting secures conduit, pipe, or other components to strut channel while accommodating elevation changes or offset routing. Fabricated for standard strut channel compatibility, the C7201-1/2 is a staple fitting for electricians and mechanical contractors working on support structure assemblies in commercial and industrial installations. The clamp provides a secure, rigid connection point and is sold in packs of 25 units per outer pack.

Rise clamps like the C7201-1/2 are commonly used in commercial and industrial electrical installations where conduit or piping must be routed at a raised offset from the strut channel baseline. Typical applications include unistrut support systems in mechanical rooms, electrical rooms, and above-ceiling installations. Electricians and pipefitters install these fittings during rough-in phases when building out support frameworks for conduit bundles, cable tray transitions, or mechanical piping runs.

Key Features

• Rise clamp profile accommodates elevated or offset conduit and pipe routing on strut channel
• Designed for use with S-strut channel systems
• Sold in 25-unit outer packs for jobsite efficiency
• Compact form factor suitable for tight support structure layouts

Compatibility

Designed as an OEM-style replacement and standard fitting for S-strut channel support systems used in commercial and industrial electrical and mechanical installations.

Installation Notes

Installation is performed by licensed electricians or pipefitters following applicable NEC and local mechanical code requirements. De-energize any nearby electrical systems before working on support structures in live electrical environments. Use appropriate hardware torque and fastener specifications per the project engineer or authority having jurisdiction. Inspect strut channel for proper alignment before securing the rise clamp in final position.

Technical Specifications

• Package Quantity: 25 per outer pack
• Package Weight: 30 pounds per 100 units
• Package Dimensions (L x W x H): 11.5 inches x 15.5 inches x 7.25 inches
• UPC: 61601314709

Standard Information

• Brand: ABB
• Manufacturer Part Number: C7201-1/2
