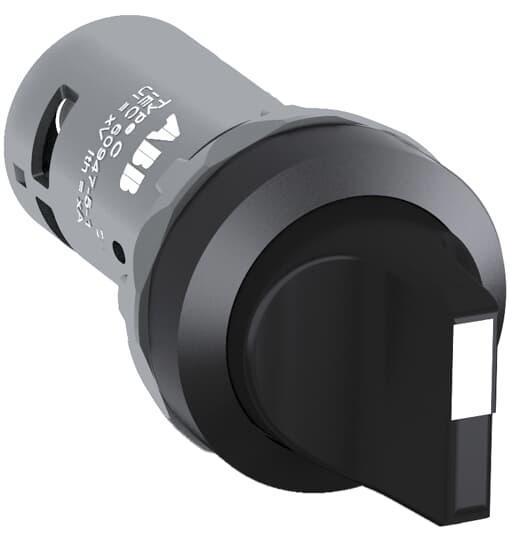

Abb C2SS1-10B-10 Compact 2 position selector switch with black non-illuminated actuator

Product Description

The ABB C2SS1-10B-10 is a compact 2 position selector switch with a black non-illuminated actuator and 22mm mounting. The actuator position is maintained at B and C. This switch is designed for assembly and cost suitability in demanding environments. It features self-cleaning contacts for a long lifetime.

• Reliable and easy to install
• Maintained actuator position at B and C
• High mechanical durability up to 10 million operations

Product Highlights

Compact 2 position selector switch with maintained actuator position and self-cleaning contacts.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: C2SS1-10B-10

Technical Specifications

• Type: PILOT DEVICE
• UNSPSC Code: 39121500
• Operation Mode: ON-OFF
• Brand: ABB
• Material: Plastic
• Mounting Type: Surface Mount
• International Protection Rating: IP54
• Manufacturer: ABB
• Manufacturer Part Number: C2SS1-10B-10
• Number of Positions: 2
• Numeric ID: 3882618
• Series: C2SS Compact Series
• Switch Function: Maintained
• Contact Mode: Maintained
• Actuator: Short Handle
• Environmental Conditions: -25 to 70 deg C Operating Temperature
• Enclosure Type: NEMA 1/12/3R/4/4X
• Throw: 90 deg Left/Right
• Contact Configuration: 1NO
• Terminal Type: Screw
• Operator Type: Short Handle
