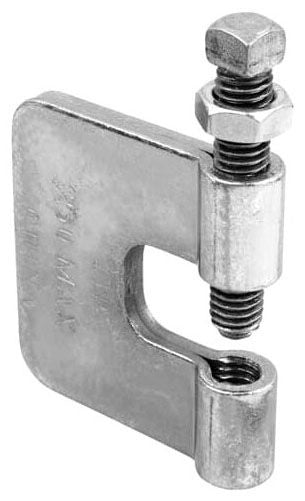

Abb C249 Steel Beam Clamp 0.75 to 1.5 Inches

Product Description

The ABB C249 is a steel beam clamp designed for securing conduit, pipe, and cable runs to structural steel members in commercial and industrial electrical installations. Part of the Kindorf line of structural support hardware, the C249 accommodates beam flange thicknesses ranging from 0.75 inches to 1.5 inches. The all-steel construction provides reliable holding strength in demanding environments. Licensed electricians and electrical contractors typically install this fitting as part of a complete conduit support system on I-beams, channels, and other structural steel.

The C249 beam clamp is suited for use in commercial buildings, industrial plants, and infrastructure projects where conduit or cable tray systems must be anchored to exposed structural steel. It is appropriate for both new construction and retrofit applications where beam-mounted support points are required. The 0.75-inch to 1.5-inch jaw range covers a wide variety of standard structural steel flange thicknesses encountered in typical commercial framing.

Key Features

• Steel construction for strength and durability in commercial and industrial environments
• Jaw capacity of 0.75 inches to 1.5 inches fits a range of structural steel flange thicknesses
• Designed for mounting conduit, pipe, or cable support hardware to I-beams and structural steel
• Part of the Kindorf structural support hardware line for consistent system compatibility

Compatibility

Designed as an OEM-style structural support fitting for conduit and cable support systems on structural steel members with flange thicknesses between 0.75 inches and 1.5 inches.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC requirements for conduit support spacing and attachment. Before installing, de-energize any nearby circuits and follow applicable site safety procedures when working around structural steel at elevation. Use appropriately rated hardware for the conduit or cable tray load being supported. Do not exceed the rated jaw capacity of the clamp.

Technical Specifications

• Material: Steel
• Jaw Capacity: 0.75 inches to 1.5 inches
• Weight: 55.56 pounds
• UPC: 78599176553

Standard Information

• Brand: ABB
• Manufacturer Part Number: C249
