Abb C18-4X-G Conduit Body C Form 8 Ocal

Product Description

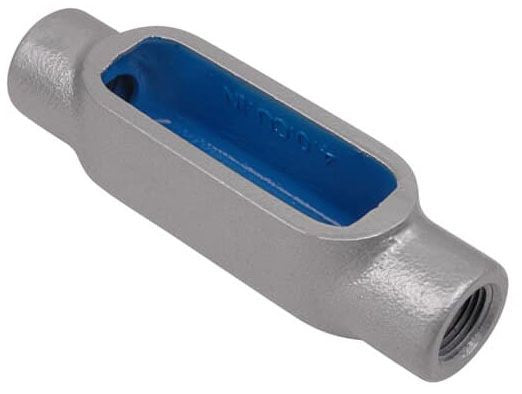

The ABB C18-4X-G is a Type C conduit body in the OCAL Form 8 configuration, designed for use in electrical raceway systems where a pull point or direction change is required. This fitting provides access to conductors for pulling, splicing, or inspection without dismantling the conduit run. Built for demanding environments, it carries a 4X rating, indicating suitability for corrosive, wet, and washdown locations. Licensed electricians install this fitting as part of rigid or intermediate metal conduit systems in industrial, commercial, and utility applications.

This conduit body is well suited for industrial facilities, wastewater treatment plants, food processing operations, chemical plants, and other locations where corrosion resistance and environmental protection are critical. The Form 8 designation identifies the specific cover and body geometry. Its 4X-rated construction makes it a reliable choice where standard conduit bodies would degrade prematurely due to moisture or chemical exposure.

Key Features

• Type C conduit body configuration for straight-through conductor access
• NEMA 4X rating for corrosion resistance in wet and washdown environments
• OCAL Form 8 design for compatibility with OCAL fittings and conduit systems
• Provides pull point access without breaking the conduit run
• Constructed for use in heavy-duty industrial and commercial raceway installations

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Type C conduit body applications within OCAL-compatible raceway systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for conduit body fill and cover fastening. De-energize all circuits in the affected raceway before opening or installing any conduit body. Ensure the cover gasket is properly seated to maintain the 4X environmental rating after conductor work is complete. Do not exceed the conduit body fill capacity as defined by NEC Article 314 for the conductor sizes used.

Technical Specifications

• Configuration: Type C Form 8
• Environmental Rating: NEMA 4X
• Dimensions (L x W x H): 13.5 inches x 7.5 inches x 7.62 inches
• Weight: 1.73 pounds
• UPC: 70450802392

Standard Information

• Brand: ABB
• Manufacturer Part Number: C18-4X-G
