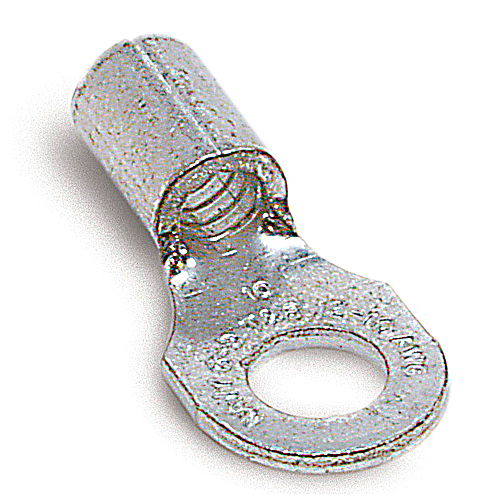

ABB C10-14 Non-Insulated Ring Terminal - 600V #12-10 AWG 1/4 in

Product Description

The ABB C10-14 Non-Insulated Ring Terminal is designed for reliable electrical connections. This terminal accommodates wire sizes ranging from twelve to ten AWG. It features a bolt hole diameter of one-fourth inch and is made from copper that is tin plated for enhanced conductivity.

• Wire Range: #12 - #10 AWG
• Length: 0.91 inches
• Voltage Rating: 600 VAC

Product Highlights

This non-insulated ring terminal is ideal for a variety of electrical applications. It is suitable for use with round conductors and can be installed using crimping tools. The serrated barrel design improves grip on the wire.

Product Information

Standard Information

• Brand: ABB
• MPN: C10-14

Technical Specifications

• Material: Copper
• Finish: Tin Plated
• Color: Metallic
• Stud Size: 1/4 inches
• Thickness: 0.04 inches
• Length: 0.91 inches
• Temperature Rating: 150 degrees C
• Standards/Approvals: UL Listed, UL 94 V-0 Flammability Rated, CSA Certified
