Abb BNDKT6 Bonding Kit A-series Panelboard

Product Description

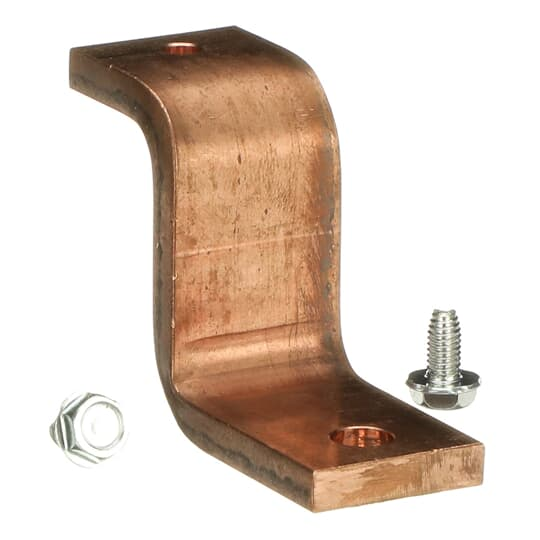

The ABB BNDKT6 is a service entrance bonding kit designed for use with A-Series panelboards. The kit ships unassembled and includes a bonding strap with all required hardware and a service entrance label. It is used to establish the neutral-to-ground bond at the service entrance point of a panelboard, a required connection when the panel functions as service entrance equipment. Electricians performing service entrance installations will find this kit supplies the necessary hardware to meet that bonding requirement without sourcing components separately.

This bonding kit is intended for use with ABB A-Series Pro-Stock unassembled lighting panels configured as service entrance equipment. It is suited to residential and light commercial installations where the A-Series panelboard serves as the first means of disconnect and requires a main bonding jumper connection. The included service entrance label provides the required marking to identify the panel as service entrance rated once the kit is installed.

Key Features

• Includes bonding strap with all required mounting hardware
• Service entrance label included for proper panel identification and code compliance
• Designed specifically for ABB A-Series panelboard applications
• Unassembled kit allows field installation during panel setup
• Provides the main bonding jumper connection required at service entrance equipment

Compatibility

Designed for use with ABB A-Series Pro-Stock unassembled lighting panelboards configured for service entrance applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the service before working inside the panelboard. The bonding strap must only be installed when the panel is used as service entrance equipment — do not install the main bonding jumper in a sub-panel or downstream distribution panel. Verify the service entrance label is affixed to the panel enclosure upon completion.

Technical Specifications

• UPC: 783175121311
• Contents: Bonding strap, mounting hardware, service entrance label
• Assembly: Unassembled

Standard Information

• Brand: ABB
• Manufacturer Part Number: BNDKT6
