Abb BEA16-4 Close Coupling Link AF09-AF16 Motor Starter

Product Description

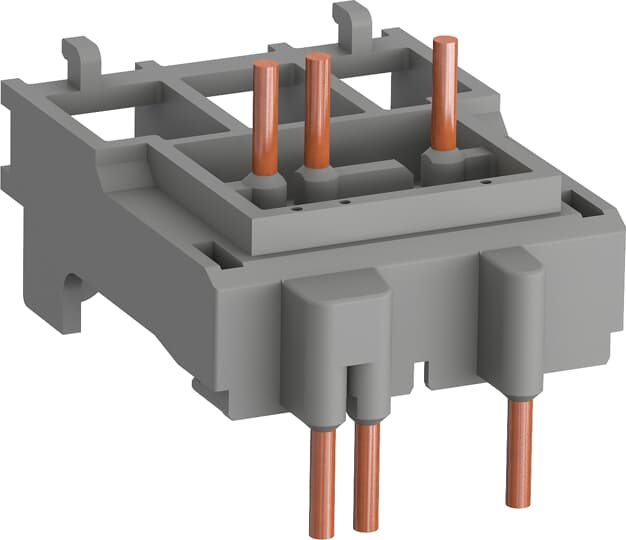

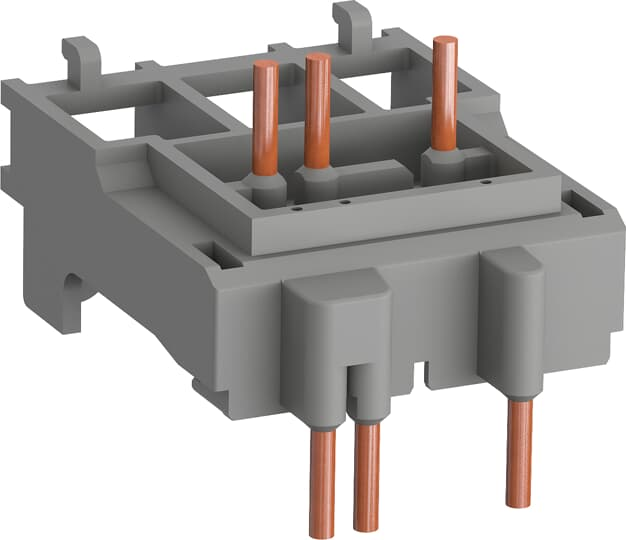

The ABB BEA16-4 is an insulated 3-pole connecting link designed to mechanically and electrically couple AF09 through AF16 series contactors with MS116 or MS132 manual motor starters. This close coupler eliminates the need for separate wiring between the contactor and motor starter by creating a direct bus-style connection. The result is a compact, integrated assembly suited for motor control panel builds and retrofit applications. Licensed electricians and panel builders working with ABB motor control components install this link as part of a coordinated starter assembly.

The BEA16-4 is used in motor control center builds, industrial panel assemblies, and commercial control enclosures where space-saving direct coupling between a contactor and manual motor protector is required. It is applicable in both new panel construction and field upgrades where AF09, AF09Z, AF16, or AF16Z contactors are paired with MS116 or MS132 motor protectors. This connecting link supports organized wiring layouts and reduces assembly time in multi-starter panel configurations.

Key Features

• 3-pole insulated construction provides simultaneous electrical and mechanical connection between contactor and motor starter
• Compatible with AF09, AF09Z, AF16, and AF16Z series contactors in the AF09-AF16 range
• Designed for use with MS116 and MS132 manual motor starters
• Close-coupler design reduces panel footprint by eliminating intermediate wiring
• Insulated body helps maintain phase isolation in tight panel assemblies

Compatibility

Designed for use with AF09, AF09Z, AF16, and AF16Z contactors paired with MS116 or MS132 manual motor starters as stated by the manufacturer.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and the panel manufacturer guidelines. De-energize and lock out the panel before installing or removing any connecting link. Verify contactor and motor starter model compatibility before assembly, and confirm that the link seats fully and securely on both devices before restoring power.

Technical Specifications

• Poles: 3
• Compatible Contactors: AF09, AF09Z, AF16, AF16Z
• Compatible Motor Starters: MS116, MS132
• Insulation: Insulated body

Standard Information

• Brand: ABB
• Manufacturer Part Number: BEA16-4
