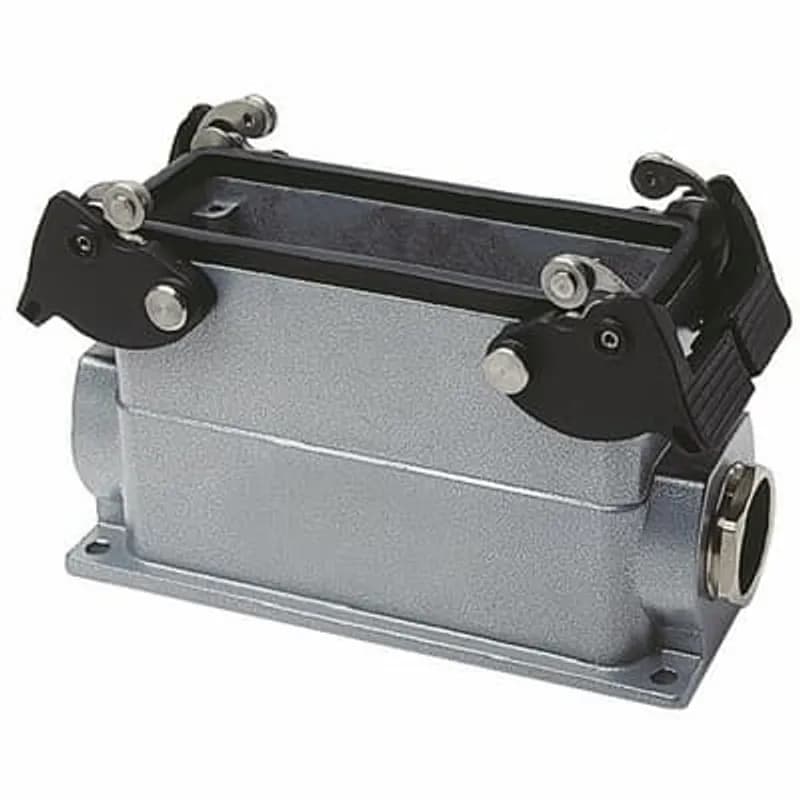

Abb BB010MV Pos-E-Kon Box Base Housing B10, Double Lock Lever System, Metal Levers. 1/2 Inch

Product Description

The ABB Pos-E-Kon Box Base Housing B10 (MPN: BB010MV) features a double lock lever system and metal levers. Designed for 1/2 inch applications, this housing is constructed from die-cast aluminum alloy with an epoxy powder-coated finish. It is suitable for use in a temperature range of -40 to +257 degrees F.

• Double lock lever system for secure connections
• Metal levers for enhanced durability
• 1/2 inch size for precise applications

Product Highlights

Durable box base housing with secure double lock lever system and metal levers, ideal for industrial electrical installations.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: BB010MV

Technical Specifications

• Material: Die-Cast Aluminum Alloy
• Finish: Epoxy Powder Coated
• Temperature Rating: -40 to +257 F
• Brand Name: Pos-E-Kon
• Standard: UL E215386
• RoHS: RoHS3 Compliant
• UL: E215386
• ETIM: EC000437 Housing for rectangular connectors
• Width: 51.9938 mm
• Height: 53.0098 mm
• Type of housing: Other
• Material housing: Aluminium
• Coating housing: Powder coating
• Position cable feed: Sideways
• With cable screw gland: N
• With hinged lid: N
• Inflammability class of insulation material acc. with UL94: V0
• Operation temperature: -40 - +125 °C
• Degree of protection (IP), mounted: Other
• Manufacturer Part Number: BB010MV
• Brand: ABB Thomas & Betts
• Connection Type: NPT
• Sub Brand: Pos-E-Kon®
