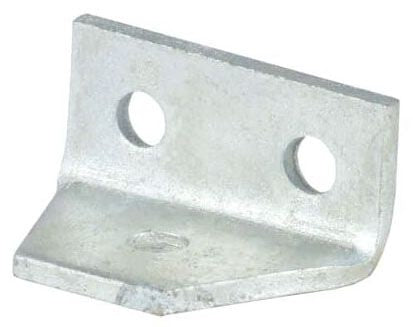

Abb B943 Galvanized Brace Connector

Product Description

The ABB B943 is a galvanized brace connector designed for use in strut channel and support framing systems. It provides a rigid mechanical connection point for diagonal bracing members, helping stabilize strut assemblies in electrical, mechanical, and structural support applications. The galvanized finish delivers corrosion resistance suitable for both indoor and exposed installation environments. Licensed electricians, pipefitters, and mechanical contractors typically install this component as part of overhead support systems where bracing is required by code or project specification.

The B943 is suited for commercial and industrial support framing installations where channel strut bracing is required. It is used in seismic bracing assemblies, suspended mechanical system supports, and general-purpose strut framework. The connector fits into standard strut channel configurations and is appropriate for ceiling grid bracing, equipment support frames, and conduit rack systems encountered in both new construction and retrofit work.

Key Features

• Galvanized finish provides corrosion resistance for indoor and semi-exposed environments
• Designed for diagonal brace connections in strut channel support systems
• Compatible with standard strut channel framing configurations
• Rigid connection geometry supports load transfer in braced frame assemblies

Compatibility

Designed as an OEM-style replacement and standard fitment connector for strut channel support framing systems requiring diagonal brace connection hardware.

Installation Notes

Installation is typically performed by licensed electricians or mechanical contractors working on support framing systems. De-energize any electrical systems in the work area before beginning overhead support work. Follow applicable NEC and local structural support codes for brace connection torque and fastener requirements. Inspect the galvanized coating for damage before installation and do not modify the connector geometry in the field.

Technical Specifications

• Finish: Galvanized
• Package Dimensions (L x W x H): 8 inches x 6 inches x 4 inches
• Weight: 61.69 pounds
• UPC: 78599175843

Standard Information

• Brand: ABB
• Manufacturer Part Number: B943
