Abb B934 Outside Corner Connector Strut Fitting

Product Description

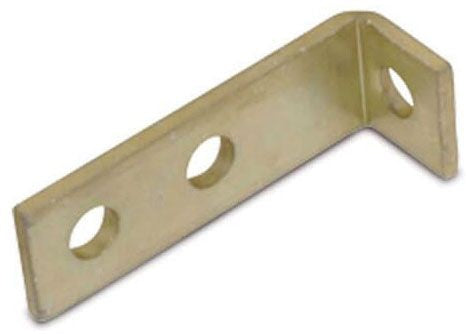

The ABB B934 is an outside corner connector designed for use with Kindorf channel strut systems. It creates a rigid 90-degree outside corner junction between strut channel runs, maintaining structural alignment in overhead and wall-mounted support assemblies. The connector is a standard component in strut framing layouts used by electricians, mechanical contractors, and plumbers to build pipe, conduit, and equipment support structures. It is sized to fit standard channel strut profiles and is installed without specialized tooling in most applications.

The B934 outside corner connector is used in commercial and industrial installations where strut channel support systems require a change in direction at an outside corner. Typical applications include electrical conduit support racks, mechanical pipe hangers, and equipment mounting frames in new construction and retrofit projects. It is suited for both indoor and covered outdoor installations depending on finish requirements.

Key Features

• Forms a rigid outside 90-degree corner junction in strut channel assemblies
• Compatible with standard Kindorf channel strut profiles
• Supports conduit, pipe, and equipment support applications
• Installs with standard strut hardware and hand tools
• Compact form factor suited to tight framing layouts

Compatibility

Designed as an OEM-style replacement and standard fitting for Kindorf channel strut support systems. No additional compatible model numbers were specified in the product data.

Installation Notes

Installation is typically performed by licensed electricians or mechanical contractors as part of a strut channel support assembly. De-energize any nearby electrical circuits before working in the vicinity of live conductors. Secure all strut hardware to the torque specifications listed in the strut system manufacturer guidelines. Verify that the completed support assembly meets applicable load requirements per NEC or local mechanical codes.

Technical Specifications

• Package Length: 9.1 inches
• Package Width: 5.2 inches
• Package Height: 4.3 inches
• Weight: 56.63 pounds
• UPC: 78599175804

Standard Information

• Brand: ABB
• Manufacturer Part Number: B934
