Abb B919 Right Hand Gusset Connection Bracket

Product Description

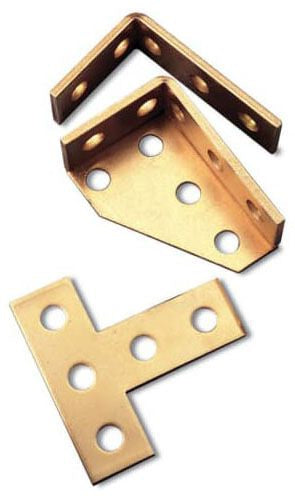

The ABB B919 is a right-hand gusset connection bracket used in structural channel framing systems. It provides a rigid angular connection point between channel strut members, supporting pipe, conduit, and mechanical equipment in commercial and industrial installations. The B919 is suited for applications where a fixed right-hand corner junction is required to maintain structural integrity across intersecting channel runs. Electricians and mechanical contractors use this hardware when assembling overhead support systems or wall-mounted framing grids.

The B919 fits into standard channel strut framing assemblies commonly found in commercial electrical, HVAC, and plumbing rough-in work. It is intended for use where channel members meet at a right-hand angle and a gusset-style connector is needed to distribute load across the joint. This bracket is appropriate for interior structural framing in both new construction and retrofit projects.

Key Features

• Right-hand gusset design provides rigid angular support at channel strut intersections
• Compatible with standard channel strut framing systems used in electrical and mechanical installations
• Compact form factor suited for overhead and wall-mounted support grid assemblies
• Packaged dimensions allow straightforward handling and storage on the job site

Compatibility

Designed as an OEM-style right-hand gusset connection component for use with standard channel strut framing systems in commercial and industrial mechanical, electrical, and plumbing installations.

Installation Notes

Installation is typically performed by licensed electricians or mechanical contractors working with channel strut support systems. De-energize all nearby circuits and relieve any load from existing framing members before modifying or extending a support assembly. Follow applicable NEC and local building code requirements for support spacing and load ratings. Use appropriate hardware torque and fastener specifications as defined by the overall framing system manufacturer.

Technical Specifications

• Package Weight: 93 pounds
• Package Dimensions (L x W x H): 10.6 inches x 7.1 inches x 5.3 inches
• UPC: 78599175768

Standard Information

• Brand: ABB
• Manufacturer Part Number: B919
