Abb B916 3-hole Angle Bracket 50 Pack

Product Description

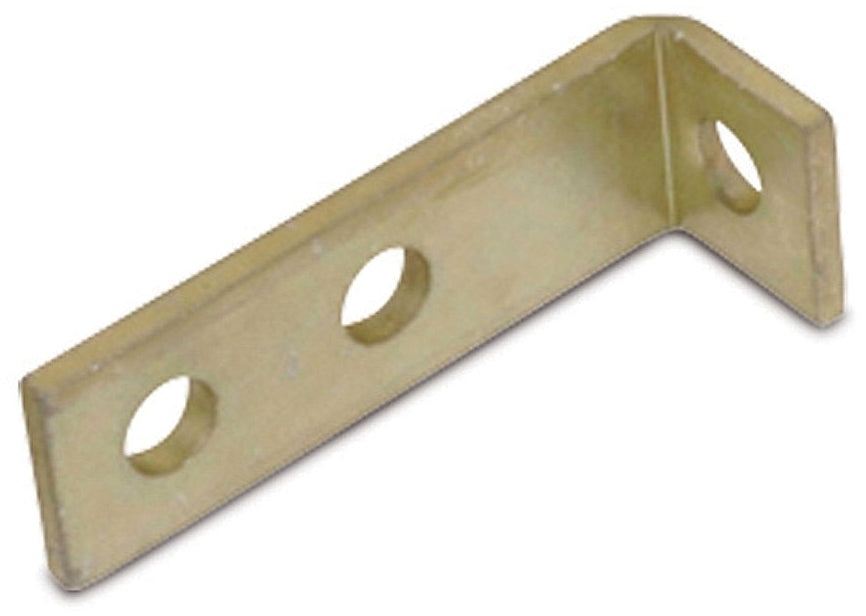

The ABB B916 is a three-hole angle bracket designed for use in electrical raceway and conduit support systems. It provides a rigid, structural connection point for channel strut assemblies, allowing installers to secure and route conduit, cable tray, and related hardware at fixed angles. Each bracket ships as part of a 50-piece pack, making it well suited for commercial and industrial projects where multiple mounting points are required. The bracket measures 9.3 inches in length, 7.0 inches in width, and 7.8 inches in height, giving it a solid footprint for load-bearing strut applications.

This angle bracket is used in commercial electrical installations, industrial facilities, and mechanical rooms where channel strut framing systems support conduit runs or equipment. It is typically installed by licensed electricians working on raceway systems in new construction or retrofit projects. The three-hole configuration provides flexible fastener placement, accommodating variations in strut spacing and structural attachment points.

Key Features

• Three-hole design allows multiple fastener positions for flexible strut attachment
• Rigid angle bracket construction supports conduit and cable management systems
• Dimensions of 9.3 x 7.0 x 7.8 inches provide a stable mounting footprint
• Sold in a 50-piece pack for efficient stocking on larger installations
• Compatible with standard channel strut raceway framing systems

Compatibility

Designed as an OEM-style replacement and standard component for use with channel strut framing and conduit support systems in commercial and industrial electrical installations.

Installation Notes

Installation is performed by licensed electricians in accordance with NEC guidelines for conduit support and raceway systems. De-energize all circuits in the work area before beginning any mounting work. Secure the bracket to strut channel using appropriate hardware torqued to the fastener manufacturer's specification. Verify that the structural support surface meets load requirements before final tightening.

Technical Specifications

• Length: 9.3 inches
• Width: 7.0 inches
• Height: 7.8 inches
• Weight (per 100 units): 51.38 pounds
• Pack Quantity: 50 per pack
• UPC: 78599175759

Standard Information

• Brand: ABB
• Manufacturer Part Number: B916
