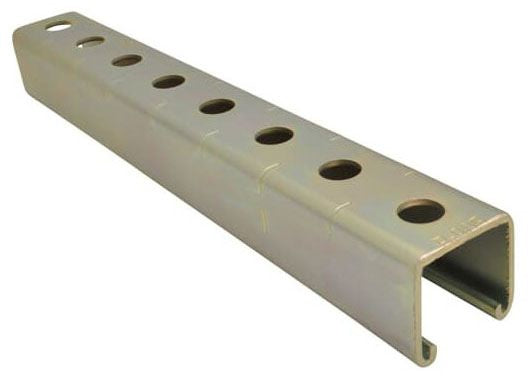

Abb B90510HD Hot Dip Galvanized Strut Channel 120 in

Product Description

The ABB B90510HD is a hot dip galvanized steel strut channel designed for structural support applications in electrical, mechanical, and plumbing installations. Built to heavy-duty specifications, this channel provides a rigid mounting and support framework for conduit, pipe, cable tray, and equipment in demanding environments. The hot dip galvanizing process delivers a thick, uniform zinc coating that resists corrosion in wet, outdoor, and industrial settings. At 120 inches in length, this channel suits long runs requiring minimal splicing. Electricians, pipefitters, and mechanical contractors use this type of strut as a core structural component in both new construction and retrofit projects.

This strut channel is suited for commercial and industrial installations where corrosion resistance and structural integrity are required. Typical applications include equipment support in mechanical rooms, conduit runs in exposed outdoor environments, pipe support in wet or corrosive service areas, and unistrut-style framing systems. The 120-inch length accommodates wide spans and reduces the number of field cuts needed on large jobs.

Key Features

• Hot dip galvanized finish for superior corrosion resistance in outdoor and wet environments
• Heavy-duty channel profile rated for high-load structural support applications
• 120-inch length minimizes splicing on long conduit or pipe support runs
• Compatible with standard strut fittings, nuts, bolts, and accessories
• Uniform zinc coating applied through hot dip process for long-term durability

Compatibility

Designed as an OEM-style replacement and standard fitment for heavy-duty strut channel framing systems using hot dip galvanized steel channel in electrical and mechanical support applications.

Installation Notes

Installation is typically performed by licensed electricians or mechanical contractors in accordance with NEC and applicable local codes. De-energize all circuits in the work area before mounting conduit or cable assemblies to the channel. Use appropriate strut nuts, hardware, and cutting tools rated for galvanized steel to avoid damaging the zinc coating during field fabrication. Cut ends should be treated with a cold galvanizing compound to restore corrosion protection at exposed surfaces.

Technical Specifications

• Finish: Hot Dip Galvanized
• Length: 120 inches
• Width: 11.5 inches
• Height: 8.2 inches
• Weight: 152 pounds
• UPC: 78599175504

Standard Information

• Brand: ABB
• Manufacturer Part Number: B90510HD
