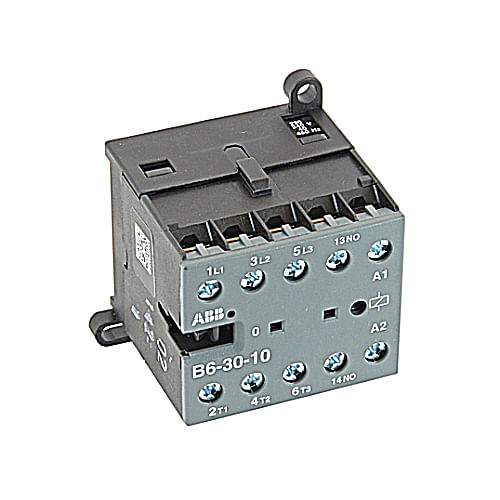

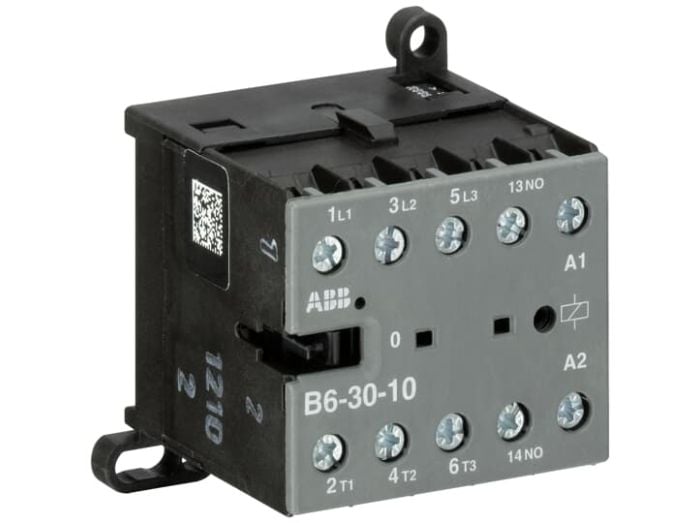

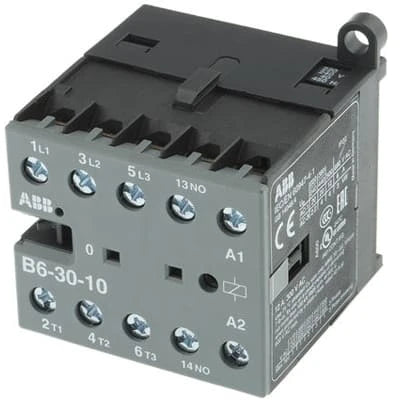

Abb B6-30-10-80 Contactor 240 VAC 1NO

Product Description

The ABB B6-30-10-80 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. Ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used for controlling single or three-phase loads.

• 3 Pole
• 1 Normally Open Auxiliary Contact
• 12 Amps
• Screw Terminals

Product Highlights

Mini contactor with 3NO poles, 1NO auxiliary contact, and screw terminals. Features a 220-240 VAC coil and is non-reversing.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: B6-30-10-80
• Country of Origin: Germany

Technical Specifications

• Brand: ABB
• Manufacturer Part Number: B6-30-10-80
• Product Series: B
• Family Series: ABB Contactors, B Series
• Nominal Coil Voltage: 240 VAC
• Coil Voltage: 220-240 VAC
• Coil Type: Magnetic
• Poles: 3NO
• Auxiliary Contact: 1NO
• Termination: Screw
• General Purpose (AC1): 12 A
• UL Motor Switching (AC3): 6.8 A
• Mechanically Interlocked: No
