Abb B518A-UPC ceiling box 18 cubic inches 3 inches 2-3/4 inches 75 pack

Product Description

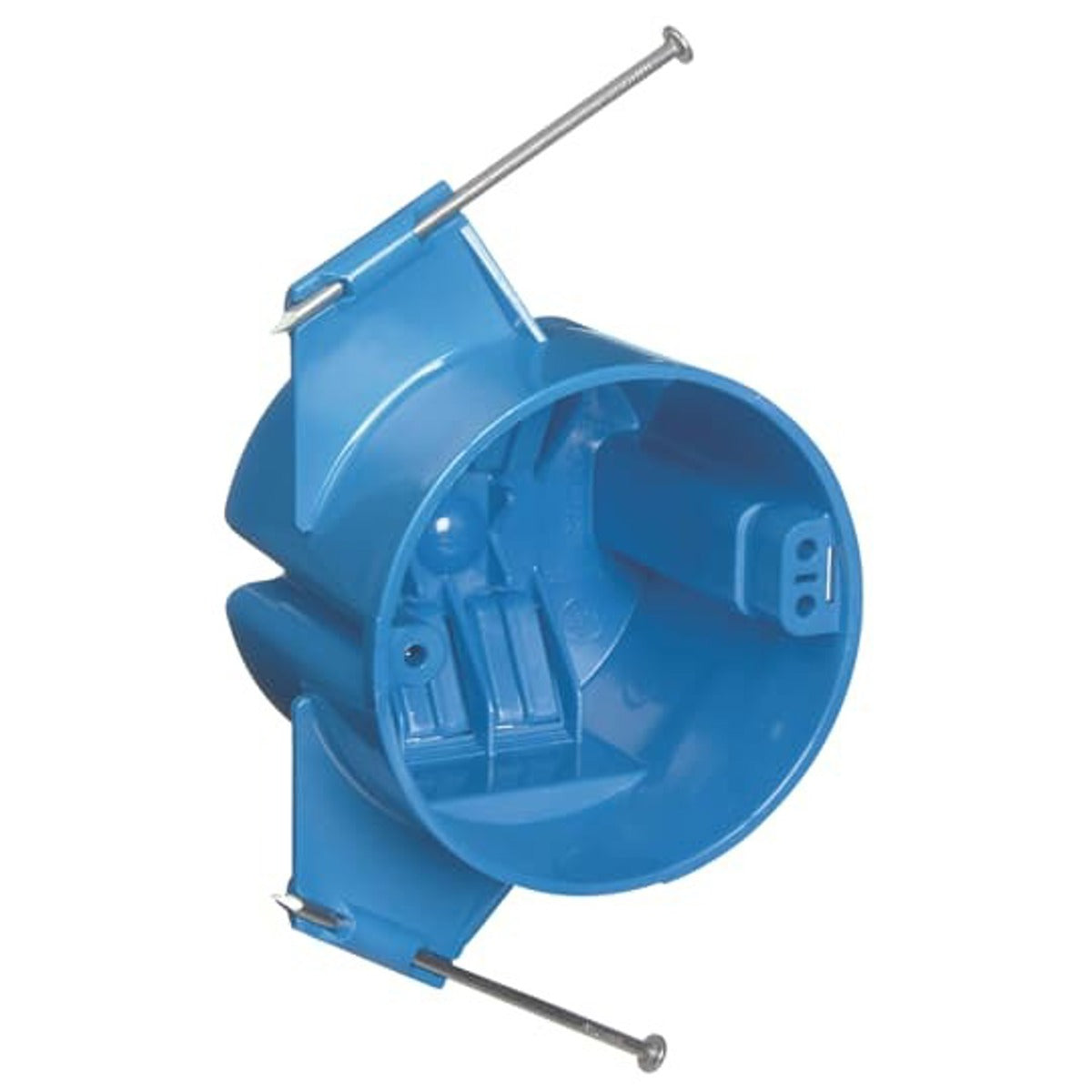

The ABB B518A-UPC is a non-metallic ceiling box designed for new work electrical installations. This round polycarbonate box offers an 18 cubic inch capacity, a 3-inch diameter, and a 2-3/4 inch depth. It is suitable for supporting light fixtures up to 50 pounds, providing a secure and compliant solution for overhead lighting applications. The box features captive nails for straightforward mounting.

• Designed for new work installations with captive nail mounting.
• Supports light fixtures weighing up to 50 pounds.
• Constructed from durable polycarbonate material.

Product Highlights

Non-metallic ceiling box with 18 cu-in capacity, 3-inch diameter, and 2-3/4-inch depth, featuring captive nail and ear/swing clamp mounting.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: B518A-UPC

Technical Specifications

• Volume: 18 Cubic Inches
• Diameter: 3 Inches
• Depth: 2-3/4 Inches
• Color: Blue
• Material: Polycarbonate
• Mounting Means: Captive Nails
• Category: Ceiling box
• Fixture Support Capacity: 50 lbs
• Knockouts: 0
• Certifications: UL E11461
• RoHS Compliance: RoHS3 Compliant
• REACH Compliance: REACH 240 Compliant
• TSCA Compliance: TSCA Section 6(h) Compliant
• File Number: E11461
• Class: QCMZ
• ETIM Classification: EC002601 Box/housing for built-in mounting in the wall/ceiling
• Shape: Round
• Construction Type: Device connection box (round/square)
• Equipped With: None
• Pipe Locking: N
• Pipe Locking Optional: N
• Type: New Work Non-Metallic
• Mounting Type: Ear/Swing Clamp
• Product Group: NON-METALLIC BOXES
• UNSPSC: 39121316
