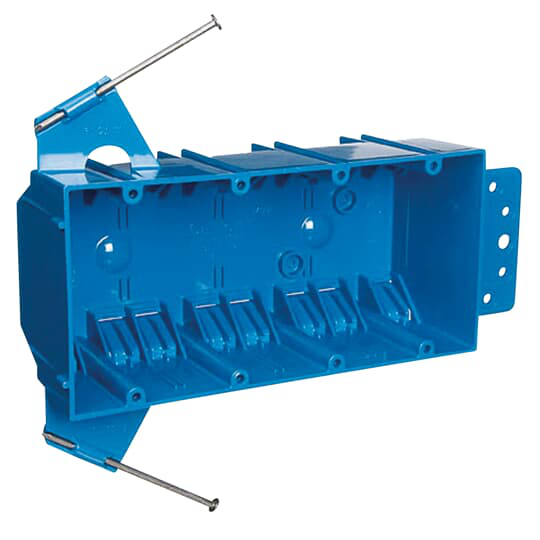

Abb B455A-UPC Four-gang Nail-on Pvc Outlet Box 60 Cu in

Product Description

The ABB B455A-UPC is a four-gang nail-on new work outlet box rated at 60 cubic inches of interior volume. Made from blue PVC, this box is designed for new construction rough-in where the electrical rough-in phase precedes drywall installation. It mounts directly to wall studs using captive nails and an integrated bracket support, eliminating the need for separate fasteners. Licensed electricians install this box during the framing stage as part of residential or light commercial wiring projects. Its 60 cubic inch volume accommodates the conductor fill requirements for multi-device or multi-switch gang configurations under NEC Article 314 fill calculations.

This box fits new work applications in wood-frame construction. It is well suited for multi-gang switch or receptacle locations in residential builds, multi-family housing, and light commercial projects. The nail-on mounting style allows fast single-handed positioning against a stud face before driving the captive nails flush. The four-gang configuration handles locations requiring multiple devices in a single box, such as grouped switches or a combination of outlets and switches on a common wall plate.

Key Features

• 60 cubic inch interior volume supports multi-conductor fill requirements per NEC Article 314
• Four-gang configuration accommodates up to four devices in a single enclosure
• Captive nails and bracket support allow fast, tool-light mounting to wood studs
• PVC construction resists moisture and eliminates corrosion concerns in damp new-work environments
• New work design intended for installation before drywall is applied
• Blue color provides quick visual identification on the job site

Compatibility

Designed as an OEM-style new work outlet box for use in wood-frame residential and light commercial construction where a four-gang nail-on PVC enclosure is required.

Installation Notes

Installation is performed by a licensed electrician during the rough-in phase before drywall. Verify conductor fill calculations comply with NEC Article 314 before pulling wire into the box. Nail the box to the stud face at the correct height per local code, ensuring the front edge is set at the appropriate depth to finish flush with the finished wall surface. Do not install in applications requiring a metallic enclosure where local code mandates steel boxes.

Technical Specifications

• Gang Count: 4
• Volume: 60 cubic inches
• Length: 7.625 inches
• Width: 3.6875 inches
• Depth: 2.5 inches
• Material: PVC
• Color: Blue
• Mounting Method: Captive nails and bracket support
• Work Type: New work
• UPC: 034481020615

Standard Information

• Brand: ABB
• Manufacturer Part Number: B455A-UPC
