Product Description

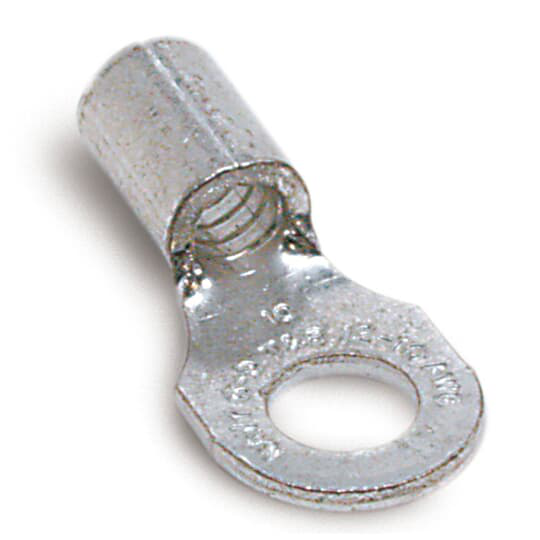

The ABB B14-38 is a non-insulated ring terminal designed for reliable electrical connections. It accommodates wire sizes from eighteen to fourteen AWG and fits a three-eighth inch bolt. The terminal is constructed from electrolytic copper and features a serrated barrel for enhanced grip. This product is suitable for use with various crimping tools, including both single and double indentors.
- Made from high conductivity electrolytic copper.
- Rated for a maximum voltage of six hundred volts.
- Compatible with wire sizes of eighteen to fourteen AWG.
Product Highlights
This non-insulated ring terminal provides a reliable, corrosion-resistant connection. The design is optimized for easy installation with standard crimping tools.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer: Thomas & Betts Co
Technical Specifications
-
Conductor Size: 18 to 14 AWG
-
Stud Size: 3/8 in
-
Length: 0.96 in
-
Width: 0.54 in
-
Material: Copper
-
Finish: Tin Coated
-
Voltage Rating: 600 VAC
-
Temperature Rating: 150 degrees C
-
Standards/Approvals: UL Listed, CSA Certified, UL 94 V-0 Flammability Rated
