Abb B-926 Z-Support Connector Length 3 Inches Width 1-1/2 Inch

Product Description

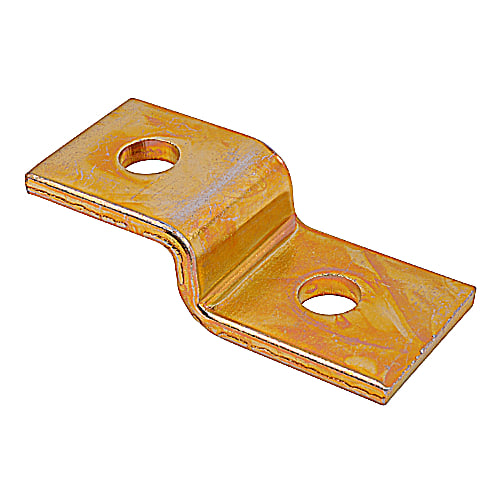

The ABB B-926 Z-Support Connector is a steel fitting designed for use with 1-1/2 inch by 1-1/2 inch channels in metal framing applications. This connector measures 3 inches in length and 1-1/2 inches in width, featuring 9/16 inch holes on 1-1/2 inch centers. It provides structural support and secure channel connections. The connector is RoHS3, REACH 224, and TSCA Section 6(h) compliant, ensuring adherence to environmental standards.

• Designed for use with 1-1/2 inch by 1-1/2 inch channels.
• Constructed from steel, measuring 3 inches in length and 1-1/2 inches in width.
• Features 9/16 inch diameter holes on 1-1/2 inch centers.

Product Highlights

Steel Z-Support Connector for 1-1/2 inch channels, 3 inches long, with 9/16 inch holes.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: B-926
• Country of Origin: United States

Technical Specifications

• Category: Angle brackets
• Application: For use with 1-1/2 in. x 1-1/2 in. channels.
• Material: Steel
• Finish: Galv-Krom/Standard
• Length: 3 in
• Width: 1-1/2 in
• RoHS Compliance: RoHS3 Compliant
• REACH Compliance: REACH 224 Compliant
• TSCA Compliance: TSCA Section 6(h) Compliant
• Fitting Type: Channel Offset Z Support
• Offset: 1-1/2 in.
• Bolt Hole Diameter: 9/16 in.
• Bolt Hole From End: 3/4 in.
• Material Thickness: 1/4 in.
• Depth: 1 in.
• Channel Used On: B-900/B-900-M/B-904/B-905/B-905-M
• Channel Width: 1-1/2 Inch
• Number of Holes: 2
• Channel Depth: 1-1/2 Inch
• Channel Thickness: 12/14 Gauge
