Abb B-917 Five-hole Angle Connector Steel Strut Bracket

Product Description

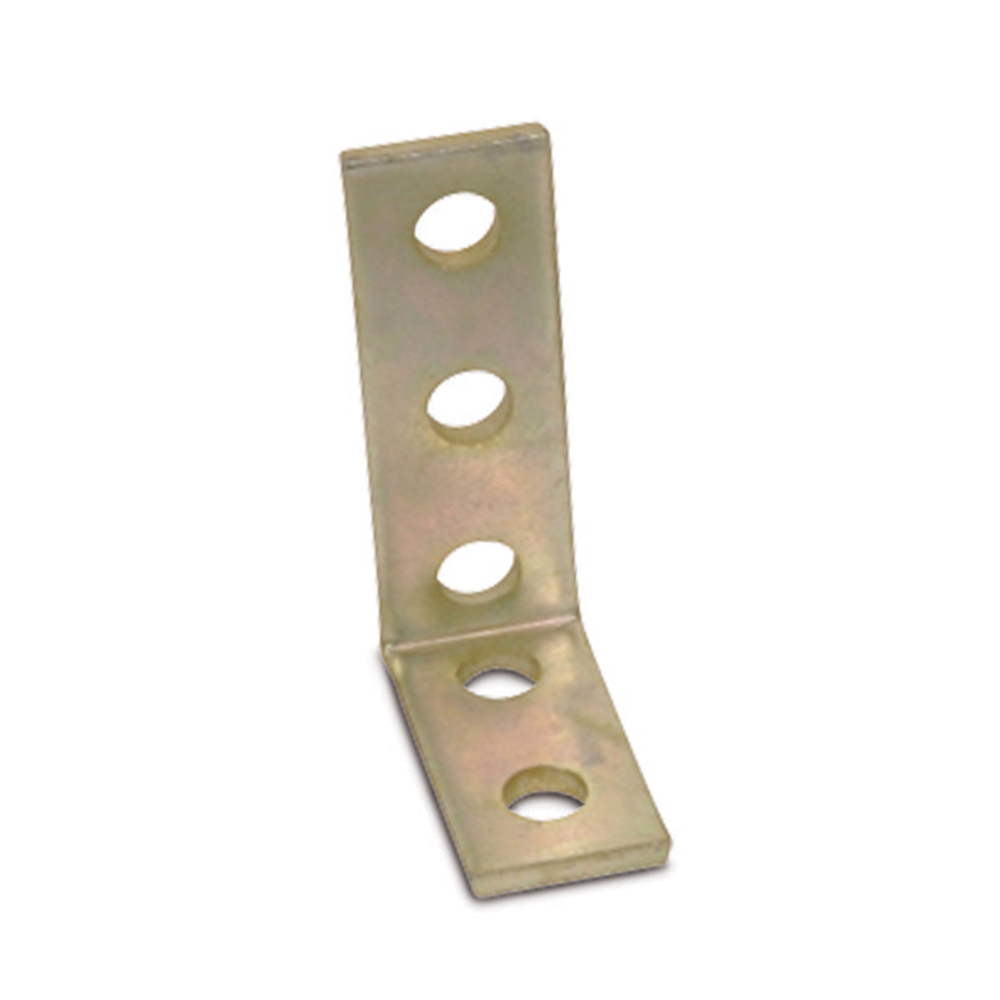

The ABB B-917 is a five-hole angle connector designed for structural strut and beam connections in electrical, mechanical, and plumbing support applications. Formed from steel, this L-shaped bracket measures 4.5 inches in overall length with a 3-inch leg extending from the beam face and a 1.5-inch width. The five mounting holes are 9/16 inch in diameter and spaced on 1.5-inch centers, conforming to standard strut channel hole patterns. Electricians, pipefitters, and mechanical contractors use this connector to join unistrut-style channel sections at right angles in rigid support assemblies.

The B-917 is suited for residential and commercial installations where strut channel framing is used to support conduit, pipe, duct, or equipment. It is a common component in electrical panel support structures, mechanical room pipe racks, and overhead cable tray systems. The angle bracket allows secure perpendicular connections between strut members and beam flanges or structural steel.

Key Features

• Five 9/16-inch holes on 1.5-inch centers for compatibility with standard strut channel hole spacing
• 4.5-inch overall length with a 3-inch beam leg for extended reach and solid bearing surface
• 1.5-inch width matches standard strut channel profile
• Steel construction for strength and durability in typical indoor support applications
• Angle design enables right-angle connections between strut sections and structural members

Compatibility

Designed as an OEM-style fitting for use with standard 1.5-inch strut channel framing systems in electrical and mechanical support assemblies.

Installation Notes

Installation is typically performed by licensed electricians or mechanical contractors as part of a strut channel support system. Ensure all support structure is de-energized and secured before beginning work in live electrical or mechanical spaces. Hardware such as carriage bolts, spring nuts, and strut washers appropriate for the channel type should be sourced separately. Installations must comply with applicable NEC or IPC support spacing requirements for the system being supported.

Technical Specifications

• Overall Length: 4.5 inches
• Length from Beam: 3 inches
• Width: 1.5 inches
• Hole Diameter: 9/16 inch
• Hole Spacing: 1.5-inch centers
• Number of Holes: 5
• Material: Steel
• UPC: 785991757620

Standard Information

• Brand: ABB
• Manufacturer Part Number: B-917
