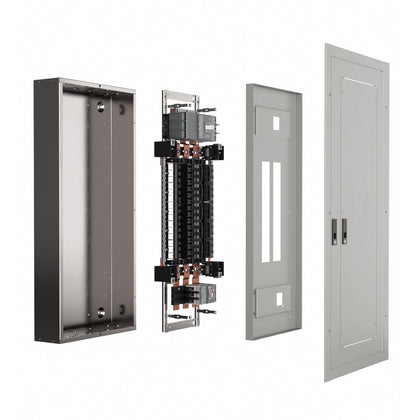

Abb AQU1424RCXAXT1B4 ReliaGear Pro-Stock Lighting Panel 400 A

Product Description

The ABB AQU1424RCXAXT1B4 ReliaGear Pro-Stock panelboards offer a symmetrical design for top or bottom feed with main breaker or main lugs. With a reversible interior, there is no need to specify top or bottom feed. Modular kits are available from inventory for immediate availability to your customers in over 1,500 panel designs.

• Symmetrical design for top or bottom feed
• Reversible interior
• Modular kits available

Product Highlights

This panel board interior operates at 240V with a 400A rating, and includes 42 circuits with feed through.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: AQU1424RCXAXT1B4

Technical Specifications

• Category: Pro-Stock Lighting Panel
• GO Schedule: 32
• Voltage: 240 V
• Phase: 1 ph
• Panel Rating: 400
• No of Circuits: 42
• Feed Thru: Yes
• Bus: Copper
• Interior Type: AQU
• Box/Front Height: 76.000 in
• Interior Description: Pro-Stock 240V, 1PH, 400A 42Cir. CU
• GSA Compliance: No
• Additional Information: Copper Bus Material, AQU Interior
• Amperage Rating: 400 A
• Feed Type: Top/Bottom
• Interrupt Rating: 65 kA
• Main Breaker/Main Lugs: Main Lug
• Terminal Connection Type: Feed-Thru Lug
• Volts AC: 240
• Amps: 400
• Circuits: 42
