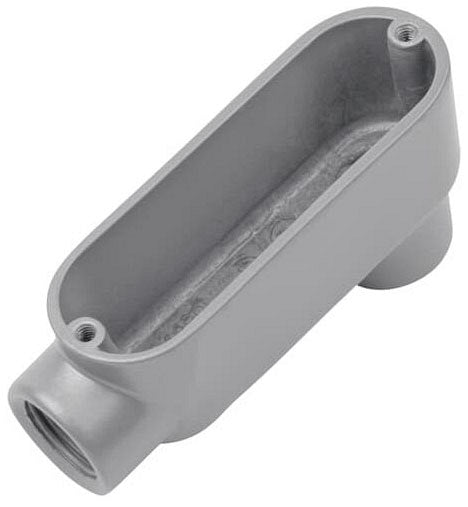

ABB ALB-4 ALB-4 RED 1 1/4 RIGID LB CONDUIT BODY

Product Description

ABB ALB-4 is a Red Dot Conduit Body, designed as a Type LB with a hub size of one and one-quarter inches. This conduit body features two hubs and provides a significant capacity of thirty-two cubic inches. It is constructed from die-cast aluminum, ensuring durability and resistance to corrosion. The dimensions are seven and one-quarter inches in length, seven and seven-eighths inches in width, and two and one-half inches in height.

• Robust construction from die-cast aluminum
• Spacious wiring chamber for easy access and maintenance
• Compatible with EMT, rigid, and IMC conduit types

Product Highlights

This conduit body is preferred by electricians for installations due to its reliability and performance in diverse conditions.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Hub Size: One and one-quarter inches

Technical Specifications

• Application: For EMT/rigid/IMC conduit
• Connection Type: NPT/Set Screw
• Dimensions: Seven and one-quarter inches L x seven and seven-eighths inches W x two and one-half inches H
• Material: Die Cast Aluminum
• Number of Hubs: Two
• Series: A Series
• Standards/Approvals: CSA Certified, Federal Specification W-C-586, NEC Article No. 370-28, UL File No. E286881
• Type: Type LB
