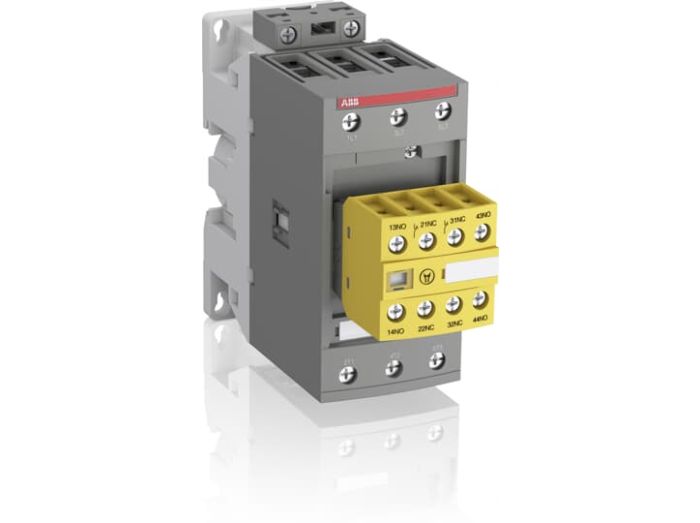

Abb AFS40-30-22-11 Afs Series Contactor

Product Description

The ABB AFS40-30-22-11 contactors are designed for machine safety applications. They are delivered with fixed front-mounted auxiliary contact blocks making them ideal for monitoring and controlling circuits. Mechanically linked and mirror contacts make your system safer. It features a coil voltage of 20-60 VDC and screw termination.

• Designed for machine safety applications
• Delivered with fixed front-mounted auxiliary contact blocks
• Ideal for monitoring and controlling circuits

Product Highlights

The ABB AFS series contactors are ideal for monitoring and controlling circuits. Mechanically linked and mirror contacts make your system safer.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: AFS40-30-22-11

Technical Specifications

• Manufacturer Part Number: AFS40-30-22-11
• Manufacturer: ABB
• Product Series: AFS
• Family Series: ABB Contactors, AFS Series
• Nominal Coil Voltage: 24 VDC, 48 VDC
• Coil Voltage: 20-60 VDC
• Coil Type: Magnetic
• Poles: 3NO
• Auxiliary Contact: 2NO, 2NC
• Termination: Screw
• UL Motor Switching (AC3): 70 A
• Net Weight: 2.24 lbs
• Gross Weight: 2.56 lbs
• UNSPSC: 39121529
• Application: designed for machine safety applications
• Mounting Type: DIN Rail
• Terminal Type: Screw
• Enclosure Type: IP10/IP20
• Connection Type: Fixed
• Frequency Rating: 50/60
• Contact Configuration: 3NO
• Operating Temperature: -60 to 80
