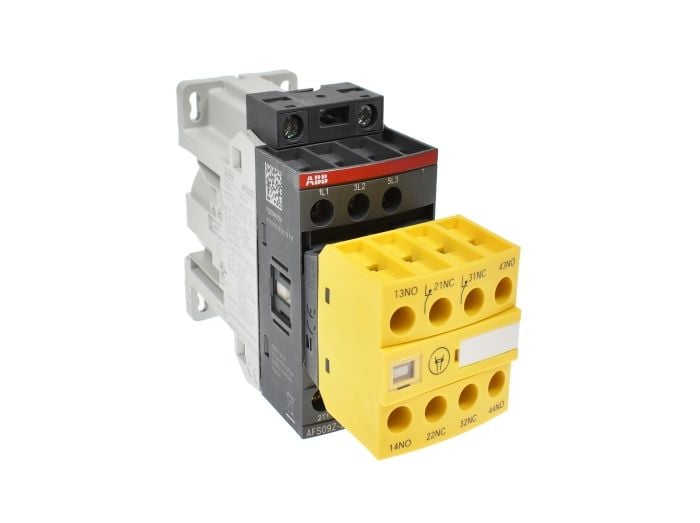

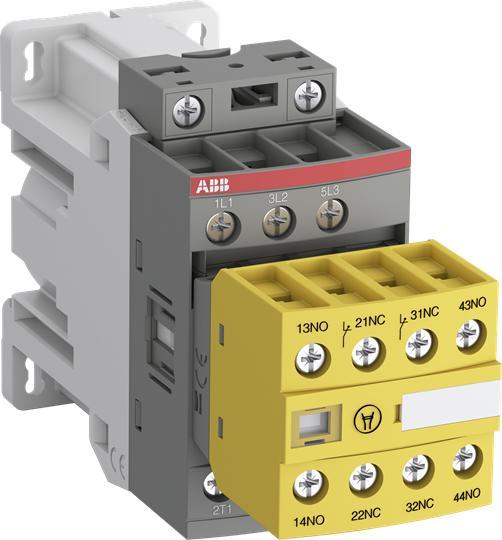

Abb AFS09Z-30-22-30 AFS09Z, 3P, 2NO

Product Description

The ABB AFS09Z-30-22-30 AFS09Z contactor is designed for machine safety applications and delivered with fixed front-mounted auxiliary contact blocks. It is ideal for monitoring and controlling circuits. This contactor features mechanically linked and mirror contacts for enhanced safety. It has a dedicated 24 V DC control circuit for direct PLC control.

• Designed for machine safety applications
• Delivered with fixed front-mounted auxiliary contact blocks
• Mechanically linked and mirror contacts
• Control circuit with electronic coil interface

Product Highlights

This ABB contactor has a permanently fixed, front-mounted auxiliary contact block and built-in surge suppression. It features a protective cover to prevent manual operation.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: AFS09Z-30-22-30

Technical Specifications

• Brand: ABB
• Terminal Type: Screw Terminals
• MPN: AFS09Z-30-22-30
• UPC: 697794675592
• Manufacturer: ABB Group
• Product Type: ELECTRONIC_COMPONENT
• Number of Poles: 3
• Series: AF Series
• Family Series: ABB Contactors
• Nominal Coil Voltage: 24 VDC
• Coil Voltage: 24 VDC
• Auxiliary Contact: 2NO, 2NC
• General Purpose (AC1): 25 A
• UL Motor Switching (AC3): 9 A
• Approvals: CSA, UL
• Coil Power Rating: 2.2/4/5.5 kW
• Contact Rating: 25 A at 600 V AC
• Operating Temperature: -60 to 80 deg C
• Wattage: 144 W
• UNSPSC: 39121529
