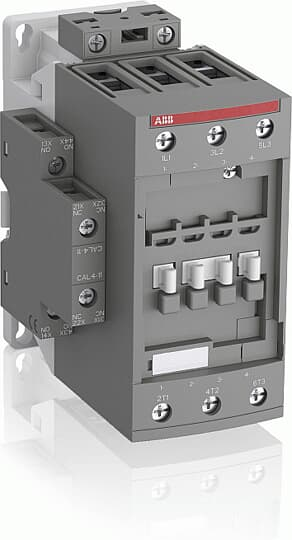

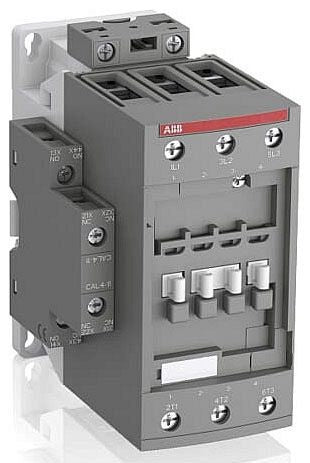

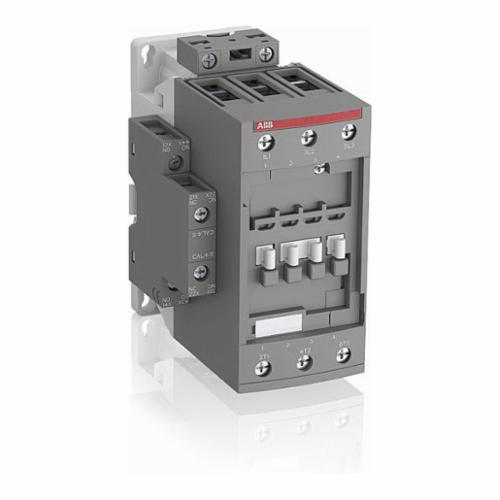

ABB AF65-30-11-13 AC/DC Operated 3P 68A 100-250 VAC/DC Replacement MPN

Product Description

The ABB AF65-30-11-13 is an AC/DC operated contactor designed for controlling power circuits up to six hundred ninety volts AC and two hundred twenty volts DC. This device is suitable for managing three-phase motors and non-inductive or slightly inductive loads.

• Power control for three-phase motors
• Accepts a wide range of control voltages from one hundred to two hundred fifty volts
• Built-in surge protection

Product Highlights

The AF65 series features a compact design with robust built-in protection, making it ideal for various industrial applications.

Product Information

Standard Information

• Brand: ABB
• Part Number: AF65-30-11-13

Technical Specifications

• Type: Contactors
• Control Voltage: One hundred to two hundred fifty volts
• Rated Current: Sixty-eight amperes
• UNSPSC Code: 39121521
• Terminal Type: Screw terminals
• Dimensions: Four point seven inches by two point seven six inches by four point five seven inches
• Applications: Primarily for controlling single and three-phase motors and switching power circuits
• Special Features: Surge protection included
