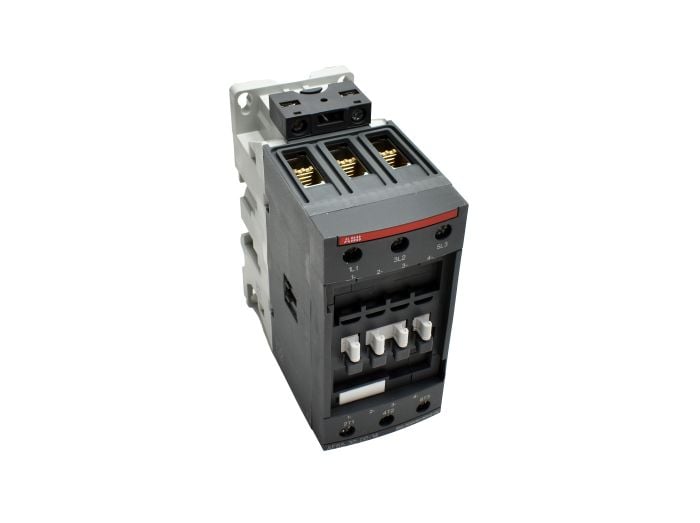

Abb AF65-30-00-14 Ctr 3P 68A 250-500VAC/DC 2/2

Product Description

The ABB AF65-30-00-14 is a contactor designed for controlling power circuits up to 600V AC and 240V DC. It is used for controlling 3-phase motors and non-inductive or slightly inductive loads. This contactor includes an electronic coil interface accepting a wide control voltage. It features integrated, electronically controlled coils which reduce energy consumption.

• Coils Cover 24 V – 500 V AC and 20 V – 500 V DC
• Built-in surge protection
• Push-in spring terminals allow for fast, easy wiring

Product Highlights

The ABB AF65-30-00-14 contactor is used for controlling power circuits and features built-in surge protection.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: AF65-30-00-14

Technical Specifications

• Type: AC Non-Reversing IEC
• Brand: ABB
• Contact Current Rating: 68 A
• Manufacturer Part Number: AF65-30-00-14
• Number of Poles: 3
• Series: AF Series
• Product Series: AF
• Family Series: ABB Contactors, AF Series
• Description: AF65 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a
• Nominal Coil Voltage: 250 VDC, 277 VAC, 380 VAC, 380 VDC, 415 VAC, 480 VAC
• Coil Voltage: 250-500 VAC, 250-500 VDC
• Coil Type: Magnetic
• Poles: 3NO
• Auxiliary Contact: None
• Termination: Screw
• General Purpose (AC1): 105 A
• UL Motor Switching (AC3): 65 A
