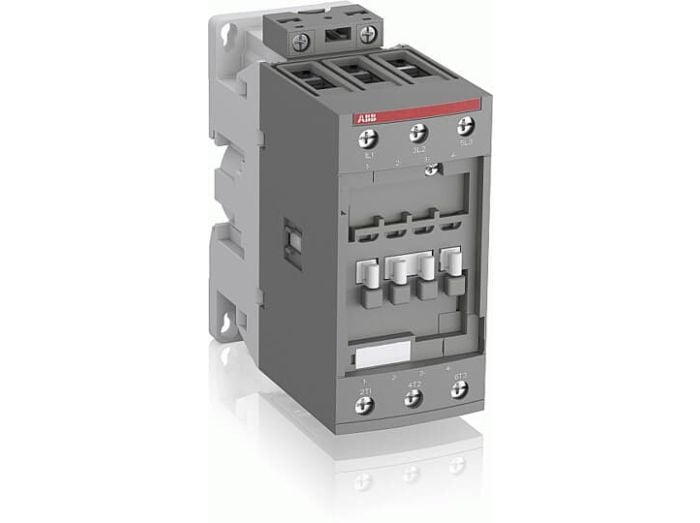

Abb AF65-30-00-12 Af65 90A, 3P, Screw Term, 48-130V50/60Hz-Dc

Product Description

The ABB AF65-30-00-12 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. These contactors include an electronic coil interface accepting a wide control voltage.

• Coils Cover 24 V - 500 V AC and 20 V - 500 V DC
• 24 V DC Coil for Direct Control by PLC-Output > 250 mA
• Low Holding Consumption up to 1.7 W

Product Highlights

AF65 contactors manage large control voltage variations and have built-in surge protection. Push-in spring terminals allow for fast, easy wiring. These contactors can overbridge voltage drops and sags.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: AF65-30-00-12
• Country of Origin: France

Technical Specifications

• Manufacturer Part Number: AF65-30-00-12
• Manufacturer: ABB
• Product Series: AF
• Family Series: ABB Contactors, AF Series
• Type: AC Non-Reversing IEC
• Nominal Coil Voltage: 60 VAC, 120 VAC, 48 VDC, 60 VDC, 125 VDC
• Coil Voltage: 48-130 VAC, 48-130 VDC
• Coil Type: Magnetic
• Poles: 3NO
• Auxiliary Contact: None
• Termination: Screw
• General Purpose (AC1): 105 A
• UL Motor Switching (AC3): 65 A
• Contact Current Rating: 68 A
• Control Voltage: 130 V
• Mounting Type: DIN Rail Mount
• Number of Poles: 3
• Series: AF Series
• Terminal Type: Screw Terminal
• Mounting Style: DIN Rail Mount
• Features: Medium Duty
