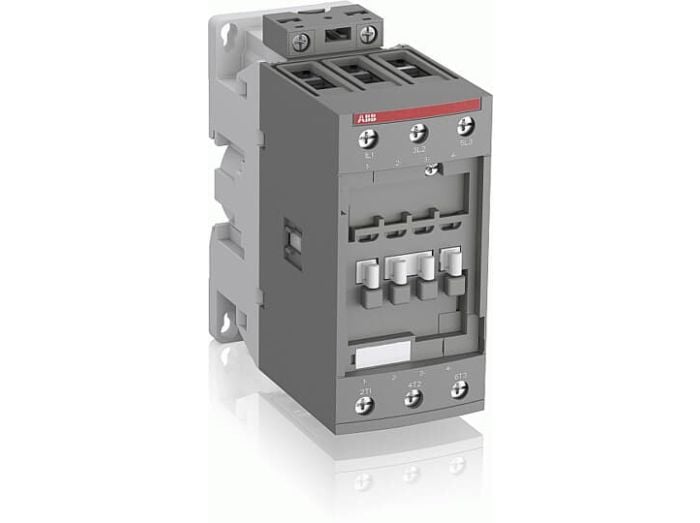

ABB AF65-30-00-11 Contactor 60HP 600VAC
Availability:
In Stock
Ships same day if ordered by 12 pm
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
- $376.45
- $376.45
- Unit price
- / per
✓
Better Price in Cart
Manufacturer pricing rules prevent us from advertising our discount — no account or email required to see it.
-
Secure Payments
-
Easy Returns
-
Expert Advice
-
Fast Shipping
Product DescriptionThe ABB AF65-30-00-11 contactor is designed for precise control of power circuits, effectively operating at 690 V AC and 220 V DC. This product is suitable for managing three-phase motors and handling non-inductive or slightly inductive loads.
- Wide coil voltage range from 24 V to 500 V AC and 20 V to 500 V DC
- Efficient low holding consumption, rated up to 1.7 W
- Integrated surge suppression for enhanced durability
Product Highlights
This contactor features electronic coils, facilitating lower energy usage and supporting installation with push-in spring terminals for swift wiring setup.Product Information
Standard Information
-
Manufacturer: ABB
-
Product Series: AF
Technical Specifications
-
Manufacturer Part Number: AF65-30-00-11
-
Type: AC Non-Reversing IEC
-
Nominal Coil Voltage: 24 VAC, 60 VAC, 24 VDC, 48 VDC, 60 VDC
-
Poles: 3NO
-
General Purpose (AC1): 105 A
-
UL Motor Switching (AC3): 65 A
-
Full Load Current: 68 A
-
Power Rating: 37 kW
-
Frequency Rating: 50/60 Hz
-
Contact Rating: 690 V
-
Enclosure Type: IP20
-
Temperature Rating: -60 to 80 deg C
-
Dimensions: 125.5 mm Height x 67 mm Width x 111 mm Depth
-
Mounting Type: DIN Rail Mount
-
Terminal Type: Screw Terminal
- Wide coil voltage range from 24 V to 500 V AC and 20 V to 500 V DC
- Efficient low holding consumption, rated up to 1.7 W
- Integrated surge suppression for enhanced durability
Product Highlights
This contactor features electronic coils, facilitating lower energy usage and supporting installation with push-in spring terminals for swift wiring setup.Product Information
Standard Information
- Manufacturer: ABB
- Product Series: AF
Technical Specifications
- Manufacturer Part Number: AF65-30-00-11
- Type: AC Non-Reversing IEC
- Nominal Coil Voltage: 24 VAC, 60 VAC, 24 VDC, 48 VDC, 60 VDC
- Poles: 3NO
- General Purpose (AC1): 105 A
- UL Motor Switching (AC3): 65 A
- Full Load Current: 68 A
- Power Rating: 37 kW
- Frequency Rating: 50/60 Hz
- Contact Rating: 690 V
- Enclosure Type: IP20
- Temperature Rating: -60 to 80 deg C
- Dimensions: 125.5 mm Height x 67 mm Width x 111 mm Depth
- Mounting Type: DIN Rail Mount
- Terminal Type: Screw Terminal
