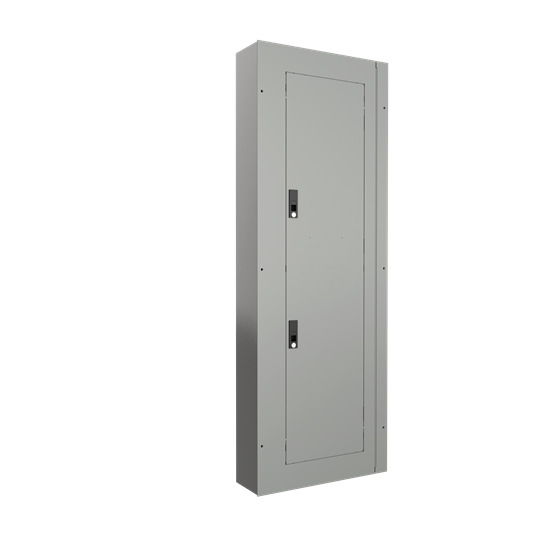

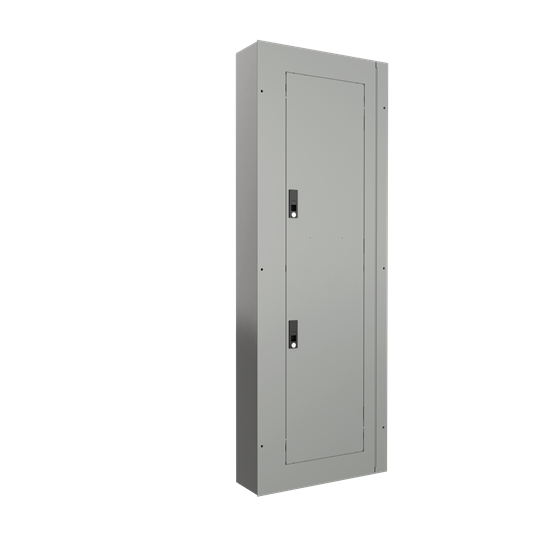

Abb AF43SD Reliagear Panel Front 43.5 X 20 in Surface Mount

Product Description

The ABB AF43SD is a surface-mount front panel designed for ReliaGear lighting panel applications. Measuring 43.5 x 20 inches, the front is hinged to the box, providing a door-in-door style configuration that allows convenient access to interior gutters without fully removing the outer door. This design streamlines routine inspections and wiring access while keeping the enclosure secure. The AF43SD is a more economical alternative to traditional door-in-door assemblies. It is intended for installation by licensed electricians working on commercial or industrial lighting panel systems.

The AF43SD is used in surface-mounted lighting panel installations where front access to gutters is needed during service or inspection. The hinged front design reduces the steps required to access internal wiring compartments. Accessing the outer door requires removing four screws, maintaining enclosure security between service intervals. This panel front is suited for commercial electrical rooms, industrial facilities, and similar environments where ReliaGear lighting panels are deployed.

Key Features

• Front hinged to box for convenient door-in-door style gutter access
• Surface mount configuration for direct wall or enclosure installation
• 43.5 x 20 inch panel front fits ReliaGear lighting panel applications
• Four-screw outer door removal maintains enclosure security
• Economical alternative to full door-in-door panel front assemblies

Compatibility

Designed as an OEM-style replacement and accessory front for ABB ReliaGear surface-mounted lighting panel enclosures.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the panel and verify the absence of voltage before beginning any work on the enclosure. Ensure the surface mounting substrate is structurally adequate to support the panel assembly. Four screws secure the outer door and must be fully removed to gain access to the interior gutters.

Technical Specifications

• Panel Front Dimensions: 43.5 x 20 inches
• Mount Type: Surface Mount
• Weight: 26.4 pounds
• UPC: 783175051618

Standard Information

• Brand: ABB
• Manufacturer Part Number: AF43SD
