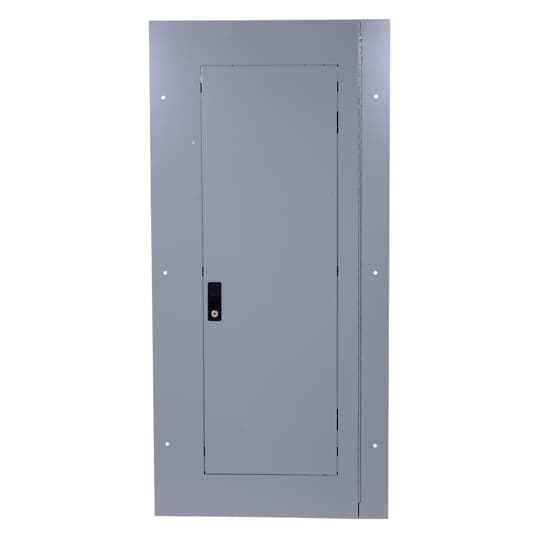

Abb AF43FD Flush Front Panel 43.5 X 20 in Reliagear

Product Description

The ABB AF43FD is a flush-mounted front panel designed for surface-mounted ReliaGear lighting panel applications. Measuring 43.5 x 20 inches, this front assembly hinges directly to the box, providing convenient access to interior gutters without requiring full panel removal. The design functions similarly to a door-in-door configuration but at a lower cost point. A contractor removes four screws to open the outer door, making routine access straightforward during service calls. This component is installed by licensed electricians working on commercial or industrial lighting distribution panels.

The AF43FD is suited for surface-mounted enclosure installations where the ReliaGear lighting panel series is deployed. It is commonly used in commercial construction and retrofit applications where panel access frequency and installation cost are key considerations. The flush front design integrates cleanly with the box assembly, maintaining a low-profile appearance on the wall surface.

Key Features

• Hinged front panel design provides tool-assisted access to interior gutters
• Door-in-door style configuration at a more economical price than comparable assemblies
• Four-screw outer door removal process for controlled, deliberate access
• Flush-mount profile suitable for surface-mounted enclosure installations
• 43.5 x 20 inch panel dimensions for ReliaGear lighting panel applications

Compatibility

Designed for use with surface-mounted ReliaGear lighting panel enclosures requiring a flush front assembly.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the panel and verify absence of voltage before beginning any enclosure work. Secure all four outer door screws fully upon reassembly to maintain proper enclosure integrity. Do not force the hinge mechanism during installation or removal.

Technical Specifications

• Width: 20 inches
• Height: 43.5 inches
• Mount Type: Flush, surface-mounted
• UPC: 783175051007

Standard Information

• Brand: ABB
• Manufacturer Part Number: AF43FD
