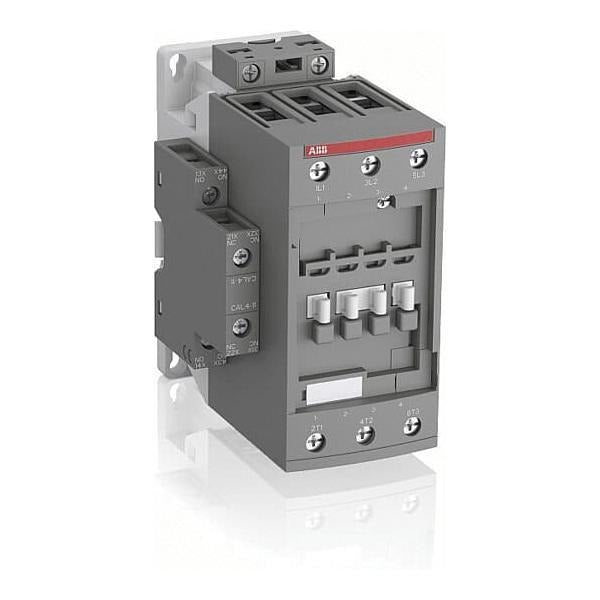

Abb af40-30-11-13 Iec Contactor 40A 3 Pole Din Rail

Product Description

The ABB af40-30-11-13 is a 3-pole IEC contactor rated for 40 amps and designed for use in motor control and power switching applications. It operates on a wide-range coil voltage of 100 to 250 VAC or VDC, allowing compatibility with both AC and DC control circuits without requiring a separate coil. The contact configuration is 3 normally open poles with a 690 VAC contact rating. Screw terminal connections and DIN rail mounting make installation straightforward in standard control panel enclosures. Licensed electricians and industrial control technicians are the primary installers for this class of device.

The af40-30-11-13 is suited for motor loads from 3 hp to 40 hp depending on phase and voltage configuration. It is commonly installed in motor starters, HVAC equipment control panels, compressor panels, pump controls, and industrial machinery requiring reliable switching at IEC-rated current levels. The wide coil voltage range simplifies panel design in facilities where control voltage varies across installations. It carries NEMA 2 and IP20/IP10 enclosure ratings, making it appropriate for general-purpose indoor control cabinet use.

Key Features

• Wide-range coil: 100 to 250 VAC/VDC accepts AC or DC control voltage without coil change
• 3-pole 3NO contact configuration rated at 690 VAC for IEC-compliant motor control
• DIN rail mounting with screw terminals for fast, secure panel installation
• Rated for up to 3,600 operating cycles for demanding switching duty
• Operating temperature range of -60 to 80 degrees F suitable for varied environments
• NEMA 2 and IP20/IP10 ratings for general-purpose indoor enclosure use

Compatibility

Designed as an IEC-rated replacement or new-installation contactor for motor control applications requiring a 3-pole device with a universal 100 to 250 VAC/VDC coil and DIN rail mounting. Motor horsepower ratings given in the product data are 3 hp, 7.5 hp, 10 hp, 15 hp, 30 hp, and 40 hp depending on voltage and phase configuration.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the panel before installing or replacing the contactor. Verify that control circuit voltage matches the coil voltage range before energizing. Do not exceed the rated continuous current or contact voltage of the device.
