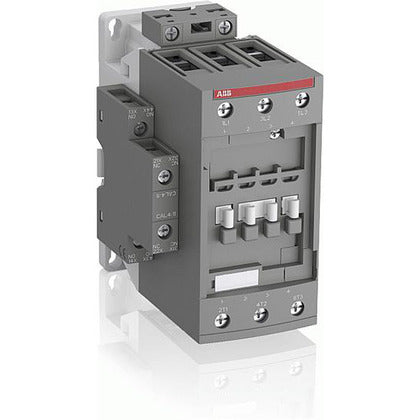

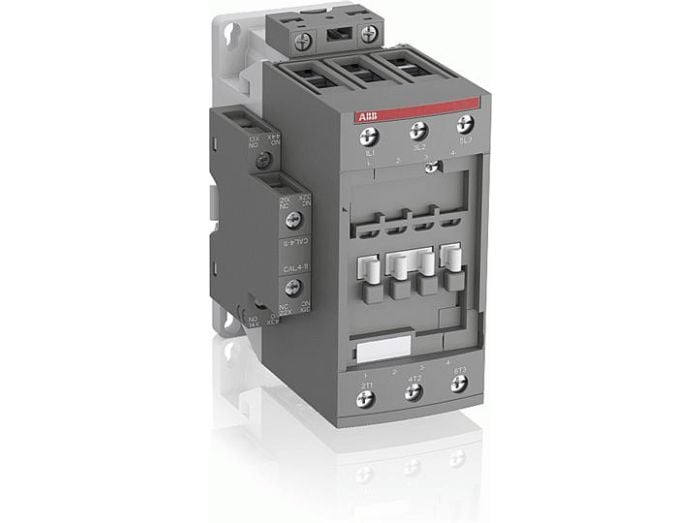

Abb AF40-30-11-12 Contactors, Af Series 48-130VAC/DC

Product Description

The ABB AF40-30-11-12 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. These contactors include an electronic coil interface accepting a wide control voltage.

• Coils Cover 24 V - 500 V AC and 20 V - 500 V DC
• 24 V DC Coil for Direct Control by PLC-Output > 250 mA
• Low Holding Consumption up to 1.7 W

Product Highlights

These AF series contactors feature built-in surge suppression and push-in spring terminals for fast wiring. They also have integrated, electronically controlled coils which reduce energy consumption.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: AF40-30-11-12

Technical Specifications

• Manufacturer Part Number: AF40-30-11-12
• Manufacturer: ABB
• Product Series: AF
• Family Series: ABB Contactors, AF Series
• Type: AC Non-Reversing IEC
• Nominal Coil Voltage: 60 VAC, 120 VAC, 48 VDC, 60 VDC, 125 VDC
• Coil Voltage: 48-130 VAC, 48-130 VDC
• Coil Type: Magnetic
• Poles: 3NO
• Auxiliary Contact: 1NO, 1NC
• Termination: Screw
• General Purpose (AC1): 70 A
• UL Motor Switching (AC3): 40 A
