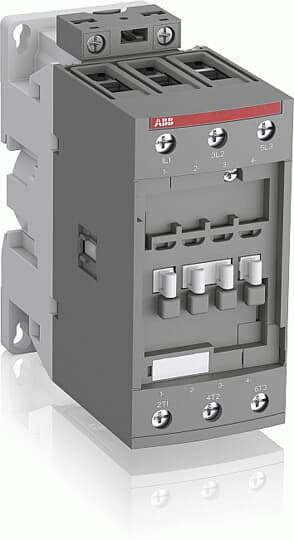

ABB AF40-30-00-11 Contactors 40HP 600VAC Replacement AF40-30-00-11

Product Description

The ABB AF40-30-00-11 is a robust three-pole contactor engineered for high-power applications, scaling up to 690 volts AC and 220 volts DC. This model is primarily utilized for operating three-phase motors and various light-industrial loads.

• Optimized for 40HP applications at 600VAC scenarios, ensuring reliable operation.
• Incorporates an expansive control voltage range from 20 to 500 volts, supporting both AC and DC inputs.
• Features built-in surge protection and requires no extra surge suppressors.

Product Highlights

The AF40 series offers a compact solution with electronic coil interface that covers a broad control voltage spectrum. It is mechanically robust and capable of handling significant control voltage variations without the need for changing coils.

Product Information

Standard Information

• Manufacturer: ABB Low Voltage
• Category: Control & Automation

Technical Specifications

• Type: 3 Pole Contactor
• Power Rating: 11 kW at 220/230/240 V, 18.5 kW at 380/400/415/440/500/690 V
• Voltage: Up to 690 Volt AC and 220 Volt DC
• Amperage: 60 Amp
• Control Circuit: AC or DC operated
• Coil Voltage: 600 VAC
• Number of Poles: 3
• Temperature Rating: -60 to 80 degrees Celsius
• Contact Configuration: 3 NO Main
