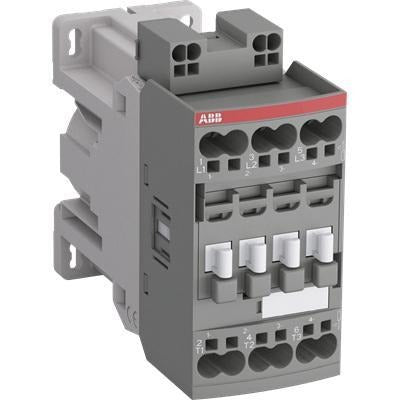

Abb af26n1r-3022-11 Reversing Contactor 26A 3-pole

Product Description

The ABB af26n1r-3022-11 is a 3-pole reversing contactor designed for motor control and load switching in three-phase electrical systems. It carries a 26-amp continuous current rating and operates at voltages up to 690 volts, making it suitable for industrial and commercial motor starter applications. The coil accepts a wide input range of 24 to 60 volts AC or DC, which simplifies integration into both legacy and modern control panels. Contact configuration is 3NO with a 200-amp contact rating. Licensed electricians and industrial controls technicians are the primary installers of this device.

This reversing contactor is used in three-phase motor control applications where forward and reverse motor direction is required. Typical installations include conveyor systems, pump controls, HVAC equipment, and other motor-driven machinery in light commercial and industrial environments. The NEMA 1 enclosure rating suits indoor installations in clean, dry locations. DIN rail mounting allows fast, tool-assisted assembly into standard control panels and enclosures. The 50/60 Hz frequency rating makes it compatible with both North American and international power systems.

Key Features

• Wide coil voltage range of 24 to 60 volts reduces the need for multiple control transformer taps
• 200-amp contact rating supports high inrush motor loads without premature contact wear
• 3-pole, 3NO contact configuration supports standard three-phase reversing motor control schemes
• DIN rail mounting with screw terminals speeds panel assembly and simplifies field wiring
• IP20 and NEMA 1 ratings confirm suitability for indoor, enclosed panel installations
• Rated for 1,200 operating cycles and a temperature range of -25 to 60 degrees C for reliable service life

Compatibility

Designed as an OEM-style replacement or direct-install reversing contactor for three-phase motor control applications requiring a 26-amp, 690-volt, 3-pole device with a 24 to 60 volt coil and DIN rail mounting.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the panel before installing or replacing this contactor. Confirm coil control voltage matches the supply before energizing. Wire sizes accepted range from 14 to 10 AWG on one terminal set and 14 to 8 AWG on the other — verify conductor sizing meets NEC ampacity requirements for the connected load.
