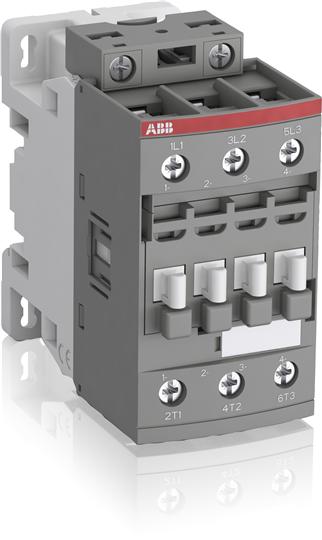

ABB AF26N1-30-00-13 Contactor NEMA Size 1 100-250 V AC Coil Non-Rev 27A

Product Description

The ABB AF26N1-30-00-13 is a non-reversing contactor designed for use with NEMA size one systems. It operates with voltages ranging from 100 to 250 VAC or VDC and supports a maximum load current of 27 amps. This 3-pole contactor is ideal for controlling three-phase motors and power circuits.

• Type: Non-Reversing Contactor
• Maximum Load Current: 27 Amps
• Voltage Rating: 100 to 250 VAC/VDC

Product Highlights

The AF26N1-30-00-13 offers reliable operation in demanding environments, maintaining performance standards with a high number of operational cycles. Its design supports various configurations useful for a wide range of industrial applications.

Product Information

Standard Information

• Manufacturer: ABB
• Part Number: AF26N1-30-00-13

Technical Specifications

• Coil Voltage: 100 to 250 VAC/VDC
• Contact Configuration: 3NO
• Contact Rating: 45 A at 690 V
• Operating Temperature: -40 to 70 degrees Celsius
• Dimensions: 45 mm W x 86 mm D x 86 mm H
• Operating Cycles: 10,000,000
• Enclosure Rating: IP20/NEMA 1
• Series: AF Series
