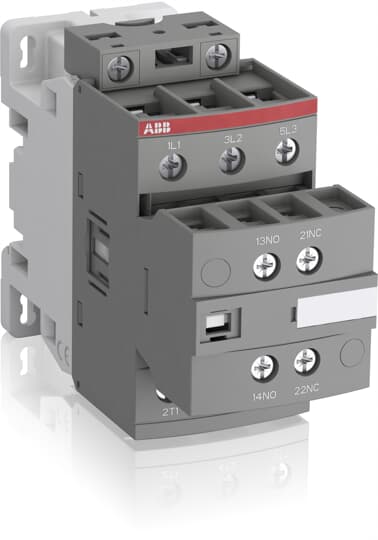

ABB AF26-30-11-11 contactor 3-P N/O 24-60AC/20-60DC Coil includes 1NO and 1NC Aux Contacts

Product Description

The ABB contactor, MPN AF26-30-11-11, is designed for controlling power circuits up to six hundred ninety volts AC and two hundred twenty volts DC. This non-reversing line contactor features a three-pole configuration and includes one normally open (NO) and one normally closed (NC) auxiliary contact. It operates at a coil voltage range of twenty-four to sixty volts AC and twenty to sixty volts DC, making it suitable for various industrial applications.

• Non-reversing contactor for reliable operation
• Handles up to forty-five amperes at six hundred ninety volts
• Designed for three-phase motors and slightly inductive loads

Product Highlights

This product is ideal for controlling 3-phase motors and offers options for a wide range of voltage applications with built-in surge protection and electronic coils.

Product Information

Standard Information

• Manufacturer: ABB
• Manufacturer Part Number: AF26-30-11-11

Technical Specifications

• Coil Power Rating: 7-1/2 hp, 15 hp, 20 hp, 2 hp, 3 hp
• Coil Voltage: 24 to 60 VAC, 20 to 60 VDC
• Contact Configuration: 3NO
• Contact Rating: 45 A at 690 V
• Dimensions: 45 mm W x 111.5 mm D x 86 mm H
• Enclosure: IP20
• Frequency Rating: 50/60 Hz
• Operating Cycles: 10000000 Cycles
• Operating Temperature: -40 to 70 deg C
