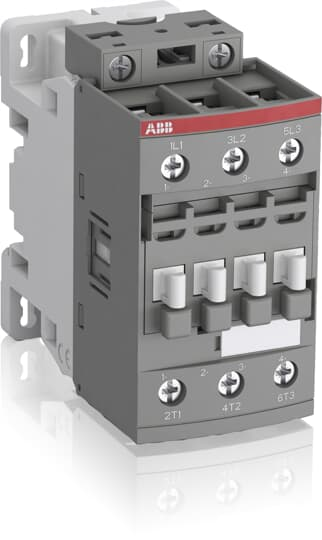

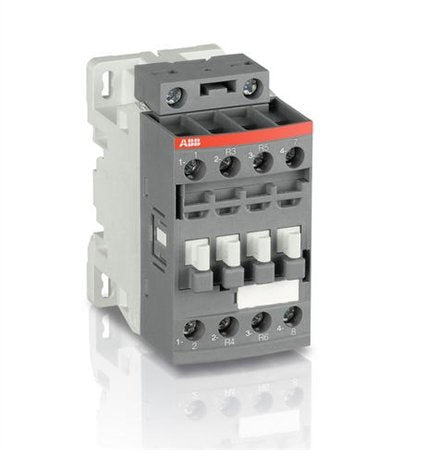

ABB AF26-30-00-11 Contactor IEC, 20-60 VAC/VDC

Product Description

ABB AF26-30-00-11 Contactor IEC operates with 20-60 VAC/VDC. It is a non-reversing contactor with 3 poles, designed for controlling 3-phase motors and non-inductive loads. Its robust construction ensures reliable performance in various industrial applications.

• 45 amperes 3-pole contactor
• Coil voltage range: 24-60 VAC, 20-60 VDC
• Dimensions: 45 x 86 x 86 millimeters

Product Highlights

ABB AF26-30-00-11 is a non-reversing contactor with 3 poles, ideal for industrial motor control applications.

Product Information

Standard Information

• Catalog Number: AF26-30-00-11
• Brand: ABB

Technical Specifications

• Voltage: 20-60 VAC/VDC
• Amperage: 45 Amp
• Dimensions: 45 x 86 x 86 mm
• Coil Voltage: 24-60 VAC, 20-60 VDC
• Number of Poles: 3
• Rated Voltage: 690 VAC
• Thermal Amperage: 50 A at 40°C
• Mounting Type: Front and Side
• Terminal Type: Screw Terminals
• Environment: -60 to 80°C Storage Temperature
• Standard: IEC 60947-1/60947-4-1, UL 508, CSA C22.2
• Power Rating: 6.5 kW at 220/230/240 V, 11 kW at 380/400 V, 15 kW at 415/440/500/690 V
• Applications: For Controlling 3-Phase Motors, Non-Inductive or Slightly Inductive Loads
• HP @ 1 Phase - 120V: 2 hp
• HP @ 1 Phase - 240V: 3 hp
• HP @ 3 Phase - 208V: 7.5 hp
• HP @ 3 Phase - 240V: 7.5 hp
• HP @ 3 Phase - 480V: 15 hp
• HP @ 3 Phase - 600V: 20 hp
• Vibration Resistance: 4 G (Contactor Closed), 2 G (Contactor Open)
