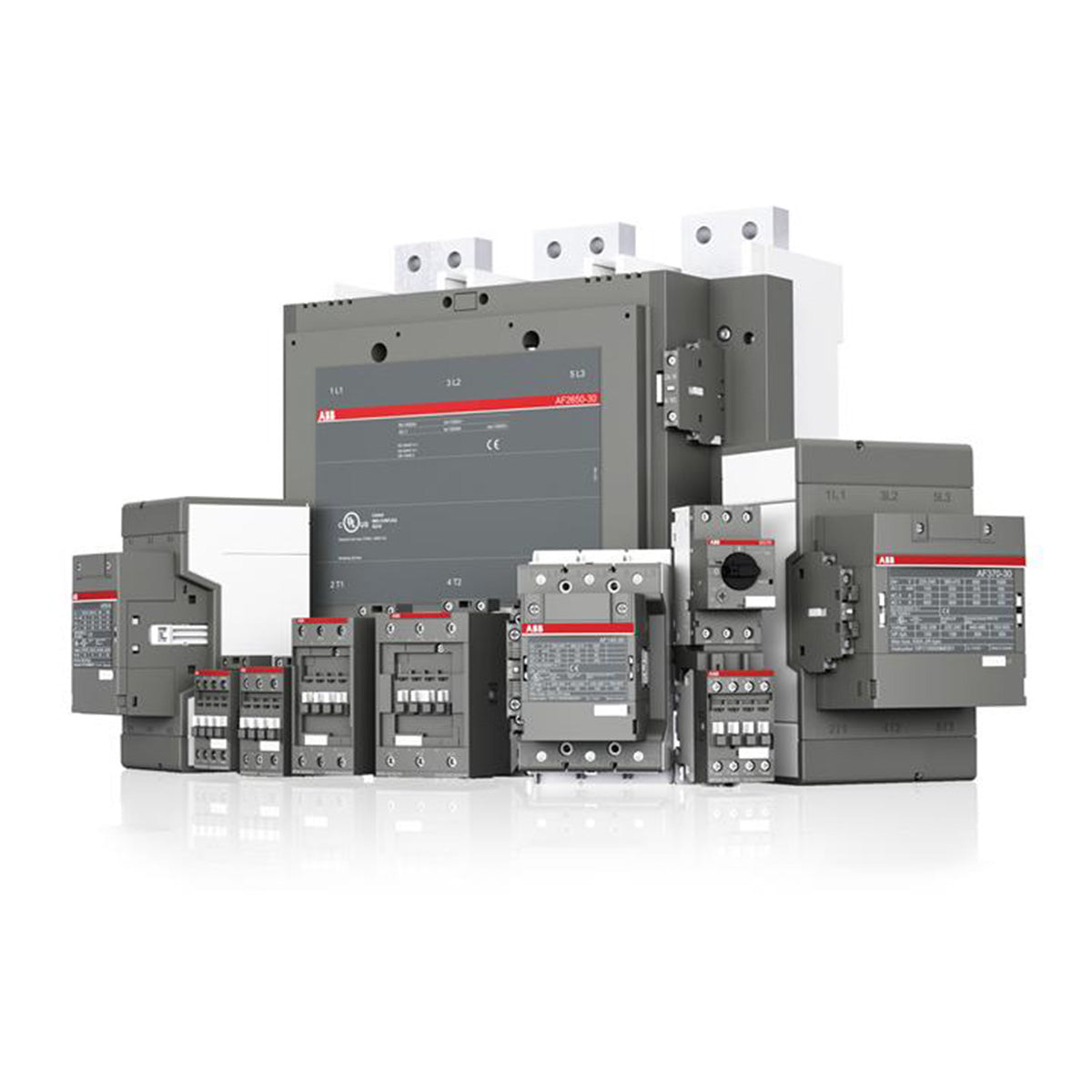

ABB AF190-30-11-13 Line Contactor 3P 250 A 100-250 VAC/DC

Product Description

ABB AF190-30-11-13 Non-Reversing Line Contactor is a robust and reliable contactor designed for industrial applications. It operates with a 100 to 250 VAC/VDC coil voltage and supports a maximum load current of 250 A.

• Rated current: 190 A
• Enclosure: IP00/IP20
• 3 Poles with 3NO contact configuration

Product Highlights

The ABB AF190-30-11-13 Line Contactor is suitable for a variety of industrial applications such as motor control circuits, power distribution systems, and more.

Product Information

Standard Information

• Brand: ABB
• MPN: AF190-30-11-13

Technical Specifications

• Coil Voltage: 100 to 250 VAC/VDC
• Maximum Load Current: 250 A
• Rated Current: 190 A
• Contact Configuration: 3NO
• Number of Poles: 3
• Enclosure: IP00/IP20
• Operating Cycles: 5000000 cycles
• Operating Temperature: -40 to 70 degrees C
• Dimensions: 105 mm W x 152 mm D x 196 mm H
• Wattage: 110/55/90/132 kW
• Terminal Type: Screw
• Standards/Approvals: BAA Compliant, BV Certified, CB Certified, CCC Certified, CE Certified, DNV GL Certified, LR Certified, RMRS Certified, RINA Certified, RoHS Compliant
